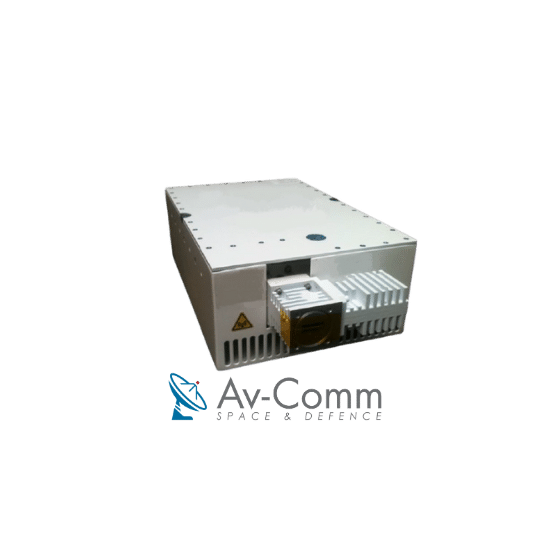

Spacepath STS80K 80W Super Compact Ku Band BUC
The Spacepath STS80K 80W Super Compact Ku Band BUC is one of the smallest and lightest GaN powered Ku Band BUCs available on the commercial market today.
Description
Description
The Spacepath STS80K 80W Super Compact Ku Band BUC is one of the smallest and lightest GaN powered Ku Band BUCs available on the commercial market today. The Spacepath STS80K 80W Ku Band BUC offers the best-in-class RF performance, embedded output isolator, and extensive monitoring and control capabilities including ethernet, serial, and SNMP.
Spacepath STS80K 80W Super Compact Ku Band BUC Options:
- Internal 10MHz Reference clock
- True RMS detector – Output power measurement
- Antenna mounting kit
- automatic level control option
- Switchable LO, standard/extended Ku Band
Key Features
| Up to 80W PSat Output Power in this super compact lightweight package 2.5Kg 16.5 x 16.5 x 9.4cm |
| RF Output Range: 13.75-14.5GHz (extended Ku Band) or 14-14.5GHz (standard Ku Band) |
| Superior RF performance |
| Phase noise 8-10dB better than IESS308/309 |
| High Linearity |
| Spurious below –60dBc |
| Wide dynamic range of Gain control |
| RF overdrive protection |
| Output power measurement |
| Built-in WG Circulator provides full output VSWR protection |
| Configuration via RS-232 serial console, packet protocol RS-485 – User friendly HTTP based GUI and SNMP optional |
| User friendly HTTP based GUI and SNMP *optional |
| 48VDC isolated power supply |
| Redundant ready with no external controller |
| Field upgradeable software |
| Status LED |
