XIPLINK – XA Optimized Appliances Overview

Description

XA-Appliances deliver the most advanced satellite and wireless optimization in easy to install appliances, assuring proper throughput at a reasonable capital cost. For small and medium sized sites with access speeds from a few Kbps to 16 Mbps, desktop style appliances are user-installed via logical GUI templates thus minimizing impact to the operations staff. For high speed links or central aggregation sites, fully redundant appliances will optimize links with aggregate capacities from 30 Mbps to 1.3 Gbps, supporting up to 200,000 simultaneous TCP sessions and dramatically increasing effective throughput to the customer.
XipLink Operating System (XipOS) is available on XA-Appliances, XipLink-XV Virtual Machine software and single board computers using XipLink-XE soft optimizers. XipOS achieves a high rate of bandwidth efficiency by providing simultaneous optimizations including TCP acceleration, several compression mechanisms, sophisticated cache techniques, web optimizations and header reduction. To increase overall effectiveness, XipOS provides a class-based QoS mechanism and has the ability to link balance when multiple paths are present.
All XA appliances are interoperable with other XipOS implementations as well as SCPS-compliant TCP accelerators.

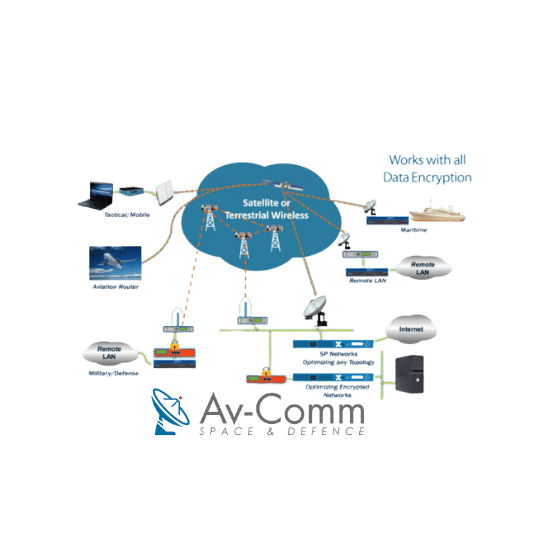

XipLink devices work over any wireless, wireline or hybrid network including the following network technologies;
XipLink Operating System (XipOS)
SCPS-TP Protocol Acceleration
Fills the wireless link to capacity:

• SCPS-TP based TCP acceleration
• Interoperable PEP (I-PEP) compliant
• XipLink Transport Control (XTC) Modes
  – Enhanced TCP
  – Fixed Rate Control
  – Dynamic Rate Control
  – Delay-Based Rate Control

Advanced Quality of Service (QoS)
Shape the wireless link bandwidth:

• Intelligent traffic shaping
• Hierarchical QoS classes
• Understands link state
• Configurable committed, maximum rates

Header and Payload Data Compression
Exceeds the wireless link bandwidth:

• Dramatic bandwidth gain, as high as 30%to 200%
• Reduces the number of packets
• Bandwidth reduction for VoIP, Skype & small packets using XipLink Real Time (XRT)

Internet Optimizations
Compress & control the explosion of data & video traffic:

• XipLink Hub Optimizations (XHO).
• XiPix lossy & Gzip lossless compression
• Transparent remote cache models

XipLink Byte Cache
Dramatic data reduction for multi-pass traffic:

• Effective on viral videos, Internet content, etc.
• Up to 80% reduction from most traffic types.
• IP-layer: Effective for both TCP and UDP traffic

XipLink Link Balancing with Bonding
Dramatic increase in capacity with reliability:

• Increase capacity and/or reliability.
• Single stream scaled over multiple paths.

Advanced Cellular Compression (ACC)
Controls growth in cellular TCP & UDP traffic:

• Supports 2.5G, 3G, 4G/LTE& Wi-Fi hotspots.
• 30%+ traffic reduction and 100 Mbps+ TCP

Advanced Features
Optimizes some unique formats and tunneled traffic:

• Transparent VLAN support.
• GRE and GTP tunnel traffic optimization

HARDWARE PRODUCT FAMILY
Models: XA-500C;
Models: XA-1000C, 2000C & 4000C
Models: XA-6K, 10K & 20K
Models: XA-30K, 60K, 100K & 200K
