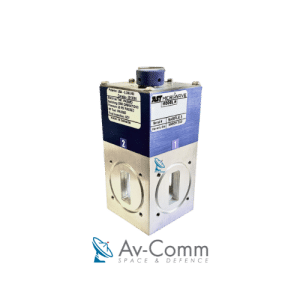

WR62 Waveguide Switch
This is a WR62 Waveguide Switch that is used to switch an input waveguide to either the A or B output port, these waveguide switches are typically used in satellite and microwave communications to switch high power RF equipment safely.
Description
Description
This is a WR62 Waveguide Switch that is used to switch an input waveguide to either the A or B output port, these waveguide switches are typically used in satellite and microwave communications to switch high power RF equipment safely.
The WR62 Waveguide Switch can be supplied in a range of configurations allowing it to be integrated with any existing waveguide redundancy or switching system. These waveguide switches can be controlled in a manual physical manner or electrically in an automatic system with control logic.
We offer an additional test & calibration service whereby our technical team can provide sweep testing of cables and waveguide to measure and document specific performance data for each assembly. We also recommend all cable and waveguide assemblies are temperature cycled; this normalises any dielectric and gasket seating ensuring optimum performance and overall stability of the assembly.
Av-Comm’s technical team is available to provide advice and consulting on appropriate coaxial, waveguide, and optical assemblies for site specific and project specific applications. Contact our team today to discuss your requirement.
Key Features
WR62 Waveguide Switch Electrical Specifications
| Operation Frequency | 12.4-18GHz |
| Return Loss | -26dB Min |
| Isolation | 70dB Min |
| Insertion Loss | .05dB Max |
| Power Handling | 2.5kW CW |
| Driving Voltage | Optional |
| C-Form Contacts | Optional |
| Inhibit Contacts | Optional (Open Before VSWR Exceeds 1.3:1) |
| Switching Time | 80 Msec Max |
| Power Connector | Optional |
WR62 Waveguide Switch Mechanical Specifications
| Waveguide Size | WR62 |
| Flange | Optional |
| Pressure | 20 PSI (Including Driver) |
| Material | 80% Aluminium) |
| Finish | Lusteron on Waveguide, Anodize on Driver |
| Weight | 480 grams |
WR62 Waveguide Switch Environmental Specifications
| Operating Temp | -40° to +75°C |
| Non- Operating Temp | -50°T0 +100°C |
| Humidity | 100% |
*Data sheets provided are to be used as a generic technical guide
only, Av-Comm may substitute manufacturers for waveguide
products if they offer equal or improved performance.
Additional information
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
| Frequency Band | |
| SKU | WR62WGS |
