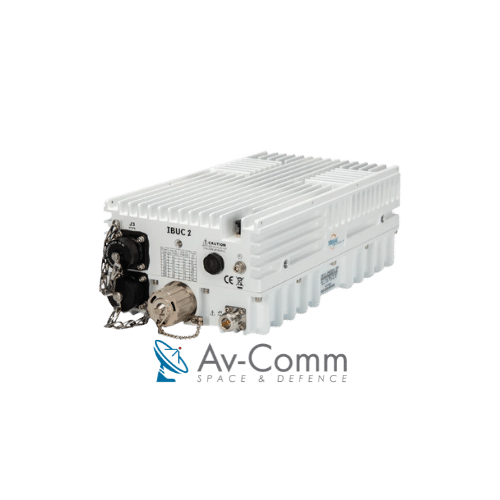

Terrasat IBUC 2e C Band 10W

Description

The Terrasat IBUC 2e C Band 10W is a compact integrated BUC/GaAs SSPA designed for high performance and reliability. The IBUC 2e is an efficient low power consumption model and draws less power from the modem ODU power supply than the IBUC 2. The Terrasat IBUC 2e C-Band 10W is based on Linear GaAs Amplifier technology which requires minimal power output backoff. The Terrasat IBUC 2e C Band 10W is a popular choice for medium-high power Satcom terminals in telecom, defence, air traffic control, government and other demanding network applications.
Terrasat IBUC 2e C Band 10W Features:

• Superior power density in a 26 x 15 x 9 cm form factor
• Ideal for feed horn mounting
• Low power consumption
• Local RJ45 web interface & NMS-Friendly SNMP
• RF Overdrive protection
• Available in all C-Band frequencies
• Small signal gain (L-band to RF) of 71dB with attenuator set to 10 dB
• CPR-137G or N(f) RF Output interface
• Dynamic range of Gain control
• Output power measurement – True RMS detector
• Integrated L-Band to C-Band up-converter
• Built-in Output Isolator provides full output VSWR protection
• Output Noise power density: (TX <- 78 dBm/Hz) (RX <- 145 dBm/Hz)
• User friendly HTTP based GUI and SNMP
• 10 MHz external reference (-12 to +5 dBm)
• IBUC Power Supply Voltage: (DC 24 ± 4 VDC) (AC 100 to 240 VAC)
• Power consumption 65W
• Field upgradeable software
• LED Light status
• Operating temperature: -40°C to +60°C

Terrasat IBUC 2e C Band 10W Options:

• High stability intenal 10 MHz reference with auto-detection
• Several Factory Select Bands
• Mounting Brackets
• Optional Type N or F-Type input connectors
• Waveguide or Type N output
• Handheld terminal

Terrasat Communications, a privately-owned US company, has been manufacturing microwave & satellite RF equipment since 1994. Terrasat started with custom engineered microwave RF modules & Block UpConverters (BUCs). Today, Terrasat produces the most innovative BUCs on the market; the IBUC–the Intelligent BUC. Unlike the typical BUC, the IBUC includes multiple sensors and a powerful micro-processor for performance improvement & feature enhancements. All IBUC models include a web interface for extensive Management & Control and are SNMP-compliant for easy interface with any NMS.
