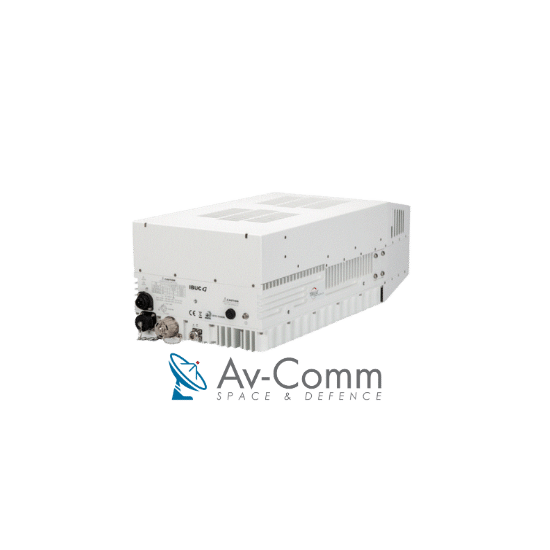

Terrasat 400W C Band IBUC G
The Terrasat 400W C-Band IBUC G is a full-featured Intelligent BUC/SSPA utilising GaN amplifier technology.
Description
Description
The Terrasat 400W C-Band IBUC G is a full-featured Intelligent BUC utilising GaN amplifier technology. The Terrasat 400W C-Band IBUC G amplifier advantages include high power output in a small outdoor form factor and low power consumption whilst working on multicarrier applications.
The Terrasat 400W C-Band IBUC G is a popular choice for high power Satcom terminals in telecom, defence, air traffic control, government and other demanding network applications.
Terrasat 400W C-Band IBUC G options:
- High stability internal 10 MHz reference with auto-detection
- Several Factory Select Bands
- Mounting Brackets
- Optional Type N or F-Type input connectors
- Waveguide or Type N output
- Handheld terminal
Key Features
| Multicarrier transmission across full C Band spectrum |
| Superior power density in a 60 x 25 x 18cm form factor |
| Gallium Nitride amplifier technology |
| Low power consumption |
| Local RJ45 web interface & NMS-Friendly SNMP |
| RF Overdrive protection |
| Available in all C-Band frequencies |
| Small signal gain (L-band to RF) of 82dB with attenuator set to 0 dB |
| CPR-137G or N(f) RF Output interface |
| Dynamic range of Gain control |
| Output power measurement – True RMS detector |
| Integrated L-Band to C-Band up-converter |
| Built-in Output Isolator provides full output VSWR protection |
| User friendly HTTP based GUI and SNMP |
| IBUC Power Supply Voltage: (AC 200 to 240 VAC) |
| Power consumption at P Lin: 1500 VA (Band 1) |
| Power consumption at P Sat: 1900 VA (Band 1) |
| Field upgradeable software |
| LED Light status |
| Operating temperature: -40°C to +60°C |
