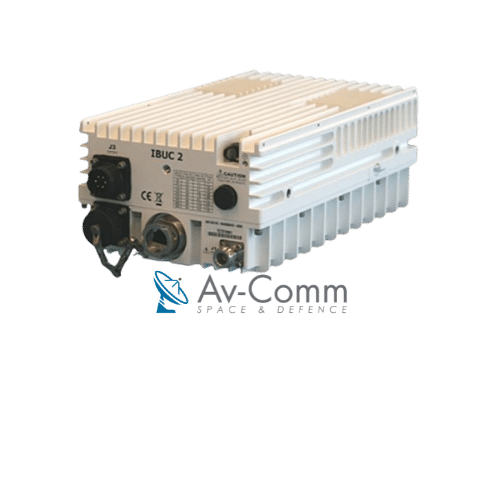

Terrasat 16W Ku Band IBUC 2

Description

The Terrasat 16W Ku-Band IBUC 2 is a compact full featured IBUC/ GaAs SSPA designed for high performance and reliability in a light weight form factor. The Terrasat 16W Ku-Band IBUC 2 is an efficient low power consumption model and includes multiple sensors & a new high capacity microprocessor. The Terrasat 16W Ku-Band IBUC 2 is a popular choice for Low-medium power VSAT and flat panel Satcom terminals in telecom, defence, air traffic control, government and other demanding network applications.
Terrasat 16W Ku-Band IBUC 2 features:

• Superior power density in a 26x15x14 cm form factor
• Ideal for feed horn mounting
• Low power consumption
• Local RJ45 web interface & NMS-Friendly SNMP
• RF Overdrive protection
• Small signal gain (L-band to RF) of 73dB with attenuator set to 0 dB
• CPR-137G or N(f) RF Output interface
• Built-in Output Isolator provides full output VSWR protection
• Output Noise power density: TX <- 78 dBm/Hz, RX <- 145 dBm/Hz
• User friendly HTTP based GUI and SNMP
• IBUC Power Supply Voltage: DC 48 ± 11 VDC, AC 100 to 240 VAC
• DC via coax available
• Power consumption: 168W 200 VA
• Field upgradeable software
• LED Light status
• Operating temperature: -40°C to +60°C

Terrasat 16W Ku-Band IBUC 2 options:

• High stability internal 10 MHz reference with auto-detection
• Two Factory Select Bands
• Mounting Brackets
• Optional Type N or F-Type input connectors
• Handheld terminal

Terrasat Communications, a privately-owned US company, has been manufacturing microwave & satellite RF equipment since 1994. Terrasat started with custom engineered microwave RF modules & Block UpConverters (BUCs). Today, Terrasat produces the most innovative BUCs on the market; the IBUC–the Intelligent BUC. Unlike the typical BUC, the IBUC includes multiple sensors and a powerful micro-processor for performance improvement & feature enhancements. All IBUC models include a web interface for extensive Management & Control and are SNMP-compliant for easy interface with any NMS.
