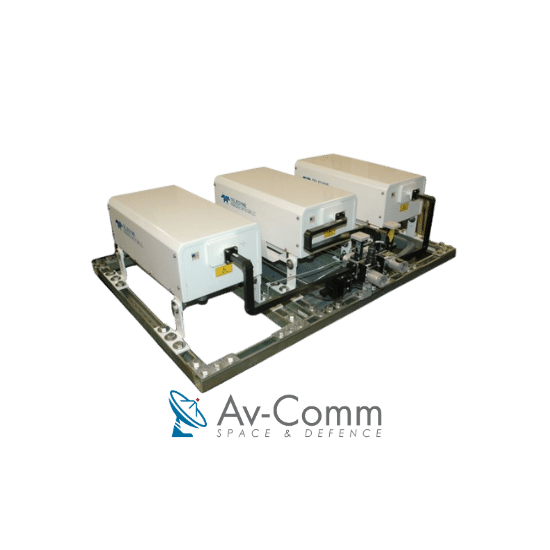

Teledyne Phase Combined Outdoor SSPA Systems

Description

Teledyne Paradise Datacom’s family of outdoor packaged, phase combined SSPA systems provide the highest degree of redundancy and system reliability.
1:1 Phase Combined Systems are an economical solution to providing high output power capability with soft-fail redundancy. 1:2 Phase Combined Systems can provide full output power redundancy to mission critical applications which cannot tolerate any decrease in output power capability.

Both 1:1 and 1:2 Phase Combined Systems utilise a signal box through which all RF and L-band input signals are distributed.
This ensures that any reference signal is modulated to each amplifier at the same frequency, and that the phase adjustment is optimised.

Options

• Handheld Controller
• Reflected Power Monitor
• Waveguide Arc Protection Kit
• L-Band Input operation
• SSPA and Controller Remote Panels
• Auxiliary / Maintenance Output Switch
• Cold Standby Operation for Prime Power Savings
• Custom Configurations
