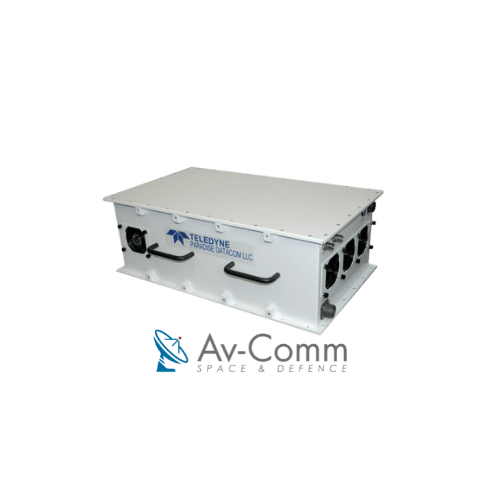

Teledyne Outdoor High Power GaAs SSPA

Description

Teledyne Paradise Datacom’s newly packaged High Power Outdoor (H) series of Solid-State Power Amplifiers is packaged with the latest Gallium Nitride, GaAs, based SSPA modules. Utilising the latest in linearised GaAs amplifier module technology, the High-Power Outdoor enclosure can achieve the highest power densities in the industry. The SSPA package achieves the highest power density in the industry, along with enhanced maintainability. A state-of-the-art thermal platform provides efficient cooling for the amplifier module and power supplies. This ensures the highest possible MTBFs for microwave power amplifiers.

Teledyne Paradise Datacom amplifiers are optimised for the best wide band interrod performance and linearity possible. All Teledyne Paradise Datacom SSPAs have a full complement of local and remote-control capability. The remote-control capabilities include: RS485/RS232 serial control, Ethernet including SNMP, UDP, and internal web browsing. Discrete hardware control, Form C contact alarms and opto isolated inputs are also included.

Options

• Handheld Controller
• RF Input Sample Port
• L-Band Input Operation
• Reflected Power Monitor
• Phase Combined Systems
• Antenna Mounting Kit
