Swedish Microwave Ka System 17.30-22.30 GHz Quad

Description

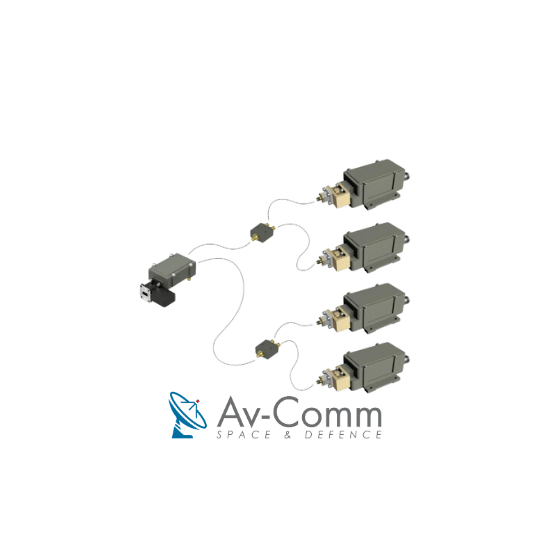

The Swedish Microwave Ka-Band Quad System provides simultaneous reception of the full Ka-Band 17.30-22.30 GHz. The system consists of a Ka LNA Wideband with waveguide isolator, four Ka BDC’s with waveguide isolators, splitters and matched HF cables.

he Ka-Band Quad System provides full coverage of the Ka receive band. The system consists of Ka LNA Wideband with waveguide isolator, Ka BDC’s with waveguide isolators and matched HF cables. Excellent Phase Noise to support all profiles of DVB-S2X services.

Options include customised LO, customised frequency ranges, customised gain, separate DC power input and separate input for the external 10 MHz reference. As an option the SMW M&C interface provides possibility to daisy chain several units in one Modbus RTU RS485 network for the optional Alarm and Monitoring & Control functionality.

• Auto Switch between External or Internal reference
• For simultaneous reception
• Alarm, Monitoring & Control as option
• Low power consumption
