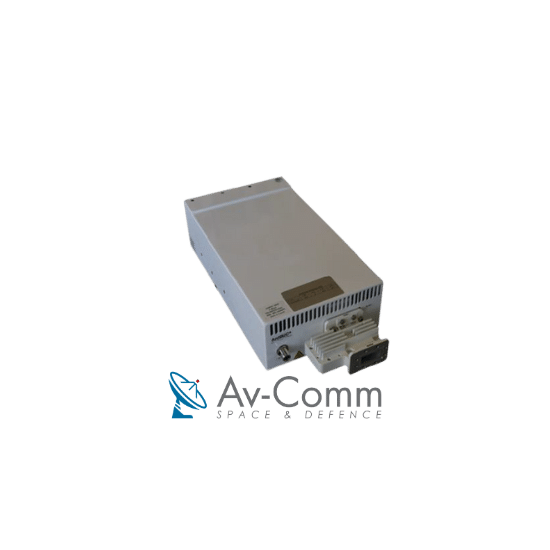

SpacePath Super Compact 400W C Band GaN BUC

Description

The SpacePath Super Compact 400W C Band GaN BUC series is powered by GaN technology and is one of the smallest, lightweight efficient units available today. The SpacePath Super Compact 400W C Band GaN BUC offer best in class RF characteristics, RF sample port, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or analogue interfaces.
The SpacePath Super Compact 400W C Band GaN BUC is designed for portable, mobile and VSAT on the move applications. Its small size and weight allows and high thermal efficiency, which makes it an economical solution for fixed VSAT applications.
SpacePath Super Compact 400W C Band GaN BUC Features:

• Extremely high power density – Up to 400W Psat in 19Kg 47 x 34.5 x 20 cm.
• Filed replaceable power supply
• Superior RF performance:
  • Phase noise 8-10dB better than IESS308/309
  • Psat up to 56dBm
  • Spurious below –60dBc
  • Wide dynamic range of Gain control
• RF overdrive protection
• Input and Output True RMS power detection
• Configuration via RS-232 serial console, packet protocol RS-485 – User friendly HTTP based GUI and SNMP optional
• 48VDC isolated power supply
• Redundant ready with no external controller
• Field upgradeable software
• Status LED

SpacePath Super Compact 400W C Band GaN BUC Options:

• Internal 10MHz Reference clock
• Available in various C-Band frequency options
• Automated Level Control (ALC) option

SpacePath Communications is a fast growing British Company, specialising in the design, manufacture and support of satellite uplink amplifiers and sub-systems. Based in the United Kingdom, SpacePath manufacture and design a wide range of high-power travelling wave tube amplifiers (TWTA), redundant system controllers and sub-systems. SpacePath also offer a comprehensive range of solid state amplifiers (SSPA) providing small, lightweight, efficient power solutions covering all uplink frequencies.
