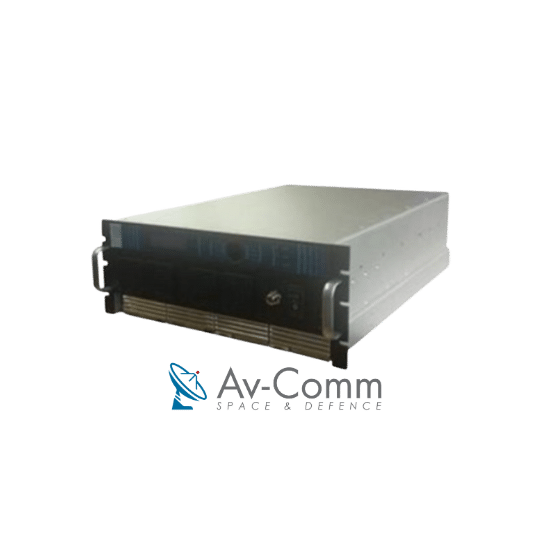

Spacepath STSR C Band 600W Rack Mounted SSPB

Description

The Spacepath STSR C Band 600W Rack Mounted SSPB is a powerful Solid State Power Amplifier (SSPA) with integrated Block-Up Converter (BUC), providing a Solid State Power Block-Upconverter (SSPB). The Spacepath STSR C Band Series utilises Spaceapth’s patent pending Z-combining technology and GaN technology to provide an SSPB series of Satellite Communications amplifiers capable of outputting 400-600 Watts.
Spacepath STSR C Band 600W Rack Mounted SSPB Features:

• Extremely high power density – up to 600W PSat in a 5RU form factor
• Superior RF Performance:
  • High Linearity
  • PSat up to 58dBm in C Band
  • Wide dynamic range of gain control
• RF overdrive protection
• M&C via RS-232, RS-485, or ethernet based web GUI, supports SNMP
• User friendly (bestie) front panel controls
• Redundant ready
• Built-in power metering
• Full VSWR protection

Spacepath STSR C Band 600W Rack Mounted SSPB Options:

• Available in difference frequency options
• Input and output RF sample ports
• Automatic level control (ALC)

SpacePath Communications is a fast growing British Company, specialising in the design, manufacture and support of satellite uplink amplifiers and sub-systems. Based in the United Kingdom, SpacePath manufacture and design a wide range of high-power travelling wave tube amplifiers (TWTA), redundant system controllers and sub-systems. SpacePath also offer a comprehensive range of solid state amplifiers (SSPA) providing small, lightweight, efficient power solutions covering all uplink frequencies.
