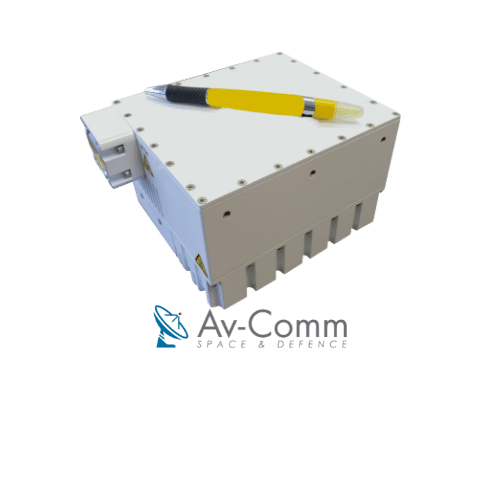

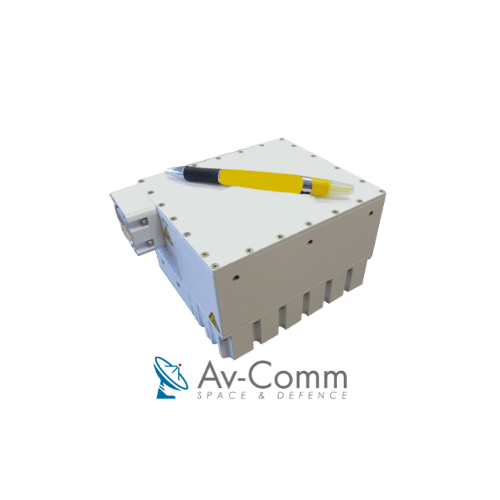

Spacepath STS20K 20W Super Compact Ku Band BUC

Description

The Spacepath STS20K 20W Ku Band BUC is one of the smallest and lightest GaN powered Ku Band BUCs available on the commercial market today. The Spacepath STS20K 20W Ku Band BUC offers the best in class RF performance, embedded output isolator, and extensive monitoring and control capabilities including ethernet, serial, and SNMP.
Spacepath STS20K 20W Super Compact Ku Band BUC Features:

• Up to 20W PSat Output Power in this super compact lightweight package 2.5Kg 16.5 x 16.5 x 9.4cm
• RF Output Range: 13.75-14.5GHz (extended Ku Band ) or 14-14.5GHz (standard Ku Band )
• Only 290W Power consumption at 60W output and 200W power consumption at PLinear output
• Superior RF performance:
• Phase noise 6dB better than IESS308/309
• High Linearity
• Spurious below –60dBc
• Wide dynamic range of Gain control
• RF overdrive protection
• Output power measurement
• Built-in WG Circulator provides full output VSWR protection
• Configuration via RS-232 serial console, packet protocol RS-485 – User friendly HTTP based GUI and SNMP optional
• 48VDC isolated power supply
• Redundant ready with no external controller
• Field upgradeable software
• Field replaceable fans
• Status LED

Spacepath STS20K 20W Super Compact Ku Band BUC Options:

• Internal 10MHz Reference clock
• True RMS detector – Output power measurement
• Antenna mounting kit
