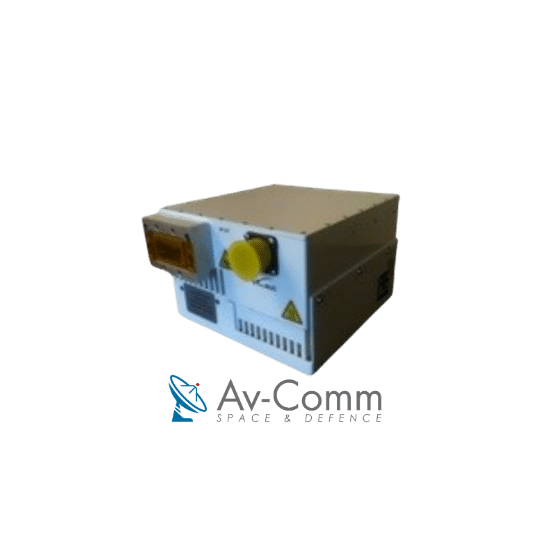

Spacepath STS16 16W X Band BUC
The Spacepath STS16 16W X Band BUC is one of the smallest and lightest X Band BUCs available on the commercial market today.
Description
Description
The Spacepath STS16 16W X Band BUC is one of the smallest and lightest X Band BUCs available on the commercial market today. The Spacepath STS16 16W X Band BUC offers the best-in-class RF performance, embedded output isolator, and extensive monitoring and control capabilities including ethernet, serial, and SNMP.
Spacepath STS100 100W X Band BUC Options:
- Internal 10MHz Reference clock
- Antenna mounting kit
- Built in auto-ranging AC power supply
Key Features
| Up to 100W Psat in this super compact lightweight package |
| Output Frequency Range: 7.9-8.4GHz |
| L Band Input Frequency Range: 950-1525MHz |
| Ideal for feedhorn or boom mounting |
| Low power consumption |
| Superior RF performance: Phase noise 10dB better than IESS308/309 P1dB of 46dBm min Spurious below โ60dBc Wide dynamic range of Gain control |
| Integrated L-Band to X-Band up-converter |
| Built-in Output Isolator provides full output VSWR protection |
| Configuration via RS-232 serial console, packet protocol RS-485 – |
| 48VDC isolated power supply |
| Redundant ready with no external controller |
| Field upgradeable software |
| Status LED |
