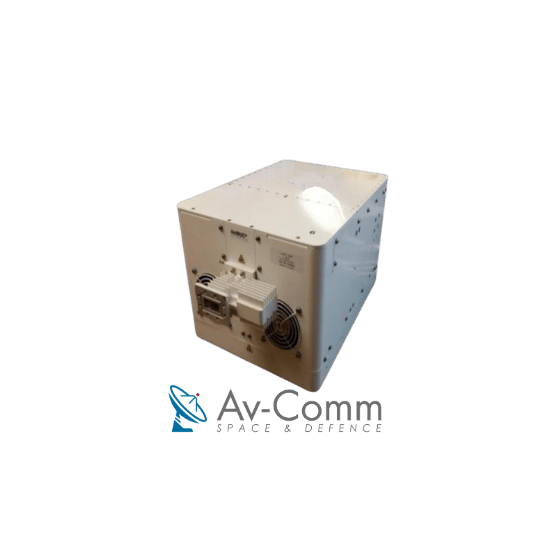

Spacepath STS1000C 1000W C Band Compact GaN BUC

Description

The Spacepath STS1000C 1000W C Band Compact GaN BUC offers the world’s smallest, lightest, most powerful and Linear GaN driven C-Band BUC/SSPB available on the market today. This series of BUC/SSPB from Spacepath allows significantly higher power Solid State Power Block-Up Converter (SSPB)/ Block-Up Converter (BUC) size and weight reduction and at the same time substantially improves thermal efficiency, which leads to higher reliability and longer MTBF. The Spacepath STS1000C 1000W C Band Compact GaN BUC is offered with a 3-year warranty.

The Spacepath STS1000C 1000W C Band Compact GaN BUC uses Spacepath’s patent pending Z-combining method and advanced GaN technology to achieve a power density – up to 1000W Psat in this compact 58 x 38 x 30cm form factor while only weighing in at 49Kg.
The Spacepath STS1000C 1000W C Band Compact GaN BUC features best in class RF characteristics, RF sample port, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or analog Interfaces.

Spacepath STS1000C 1000W C Band Compact GaN BUC Options:

• Internal / Autosense 10MHz Reference
• Automated Level Control (ALC)
• BUC or SSPA (L band or C Band input)
• Antenna Mounting Kit
• External Rackmount Remote M&C Panel
