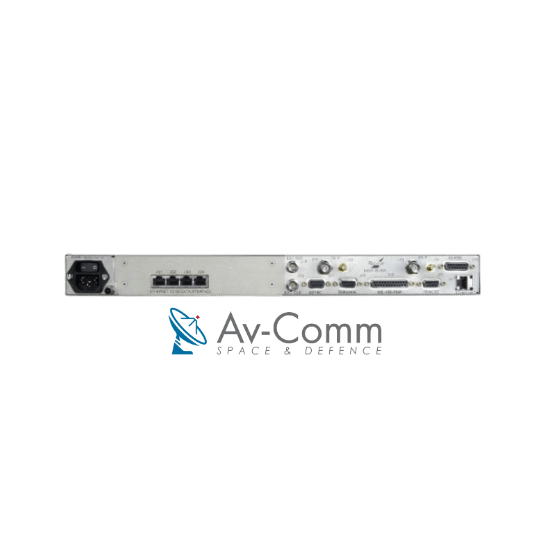

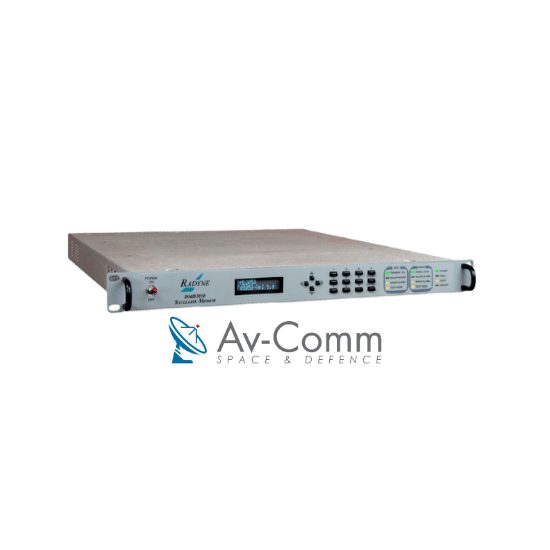

Radyne DMD2050 MIL-STD-188-165A Satellite Modem

Description

The Radyne DMD2050E Satellite Modem is designed to comply with the widest possible range of U.S. Government and commercial standards and is compatible with the largest number of satellite modems in the industry. It is fully compliant with MIL-STD-188-165A (all terminal types), fully complies with STANAG 4486 Edition 3, as well as the IESS-308, IESS-309, IESS-310 & IESS–315 commercial standards.

The Radyne DMD2050E Satellite Modem provides highly advanced and bandwidth-efficient forward error correction (FEC). Advanced FEC options include Turbo Product Codes (TPCs) and Low Density Parity Check (LDPC). Legacy support for Viterbi, Trellis, Concatenated Viterbi Reed-Solomon, and Sequential FEC are also included. A complete range of modulation types is supported, including BPSK, QPSK, OQPSK, 8PSK, 8-QAM, and 16-QAM.

Radyne DMD2050E Satellite Modem Features:

• Standards compliant: MIL-STD-188-165A (all modes), OM-73, IESS-308/309/310/314/315 and optional DVB-S per EN301-210 and EN300-421
• Standard MIL-STD-188-114 (EIA-530/RS-422) serial data interface
• Interface options include Ethernet 10/100/1000Base-T (GigE), Ethernet 10/100Base-T (Fast Ethernet), HSSI, G.703 T1/E1-T2/E2, G.703 T1/E1-T2/E2 & T3/E3, HSSI & Ethernet 10/100Base-T, HSSI & G.703 T1/E1-T2/E2, HSSI & G.703 T1/E1-T2/E2 & T3/E3, DVB ASI/SPI
• Ethernet flow control & Quality of Service (QoS)
• Integrated DoubleTalk Carrier-in-Carrier
• LPDC, TPC, Viterbi, Reed-Solomon, Trellis, Sequential, DVB-S FEC Code configuration, monitor and control features are fully user-programmable
• BPSK/QPSK/OQPSK/8PSK/16-QAM
• 2.4 kbps to 52 Mbps
• 70 ±18 MHz and 140 ± 36 MHz IF, and 950 to 2050 MHz L-Band in 1 Hz steps
• Drop and insert (G.703 interface)
• IDR, IBS
• DC input power 48 VDC option
• High-stability reference
• Asynchronous overhead
• Automatic Uplink Power Control (AUPC)
