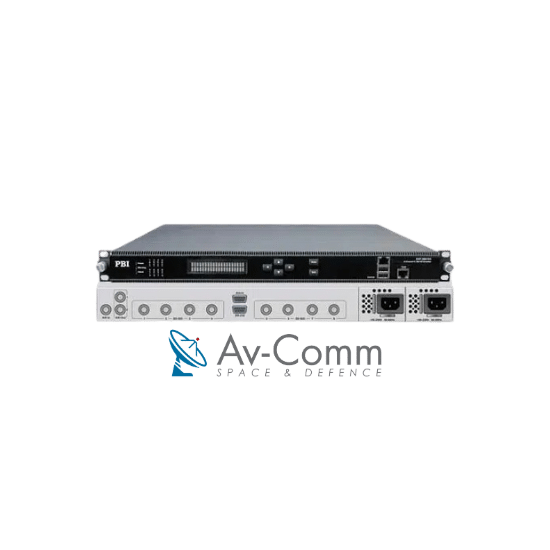

PBI DXP-5800 8 Channel MPEG 4 Encoder

Name: PBI DXP-5800 8 Channel MPEG 4 Encoder - Av-Comm Space & Defence
Brand: PBI
SKU: HEP5800-8Ch

The PBI DXP-5800 8 Channel MPEG 4 Encoder is a high density real-time MPEG 4 HD/SD encoder that can support up to eight high definition (HD) A/V signals simultaneously.

Request a Formal Quotation

Description

The PBI DXP-5800 8 Channel MPEG 4 Encoder is a high density real-time MPEG 4 HD/SD encoder that can support up to eight high definition (HD) A/V signals simultaneously. The PBI DXP-5800 8 Channel MPEG 4 Encoder can accept upto 8 x HDMI or 8 x SDI input ports (optional), the encoded streams can then be re-multiplexed and distributed via GbE IP and ASI outputs.

The PBI DXP-5800 8 Channel MPEG 4 Encoder operates in two TS/IP modes, first is “Full Duplex”, which allows a MPTS or SPTS stream to be outputted via 1 x multicast/unicast stream. The second mode, “Multiple output”, delivers up to 9 streams over IP. There are 8 SPTS and 1 MPTS (from internal reMultiplexer) over the IP with different Unicast or Multicast IP addresses.

The PBI DXP-5800 8 Channel MPEG 4 Encoder can be configured via the front panel, or web management interface, or SNMP based management software from 3rd party. This Encoder family presents brilliant picture quality, high density design, high stability system architecture, and the hot-swappable power supply.

Key Features

Meets H.264/AVC HP@L4.0 standards
MPEG1 Layer II, MPEG2 AAC-LC, MPEG4 AAC-LC audio compression
8-way real time encoder with re-multiplexed integrated
Built-in re-Mux accepts upto 10 SPTS/ MPTS (8 from local encoders, 2 from external input over IP and ASI)
1 ASI input (for daisy chain) & Redundant ASI output
Full duplex Gigabit TS over IP I/O (under Full duplex operation mode)
Upto 9 multicast/unicast output (under Multiple output operation mode)
VBR and CBR encoding mode
Free resolution downscale at same frame rate
SNMP & HTTP WEB
Redundant power supplies
19″ X 1 U EIA stanadard chassis
