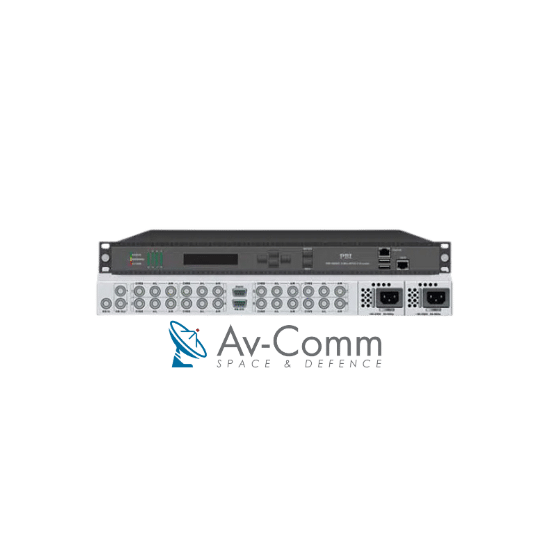

PBI DXP-3800EC 8 Channel MPEG 2 SD Encoder

Description

The PBI DXP-3800EC 8 Channel MPEG 2 SD Encoder is a high density 8 channel encoder ideally suited to broadcast and IPTV applications. The PBI DXP-3800EC 8 Channel MPEG 2 SD Encoder can accept up to eight CVBS inputs of Standard Definition (SD) with unbalanced (RCA) stereo audio. The services are then encoded simultaneously and outputted via TS/IP or via ASI output. The encoded channels can be re-multiplexed with a second TS stream looped through the re-multiplexer via the ASI input, the new TS stream is then available via the DXP-3800EC’s Gigabit TS/IP port and ASI output port.
Features

• Meets MPEG-1(ISO/IEC11172), MPEG-2 MP@ML(ISO/IEC13818) standards
• 8-way encoder with integrated re-multiplexer
• 1 ASI input (for daisy chain) & 1 ASI output
• Full duplex Gigabit TS over IP
• Video resolutions: 576i (PAL, SECAM) & 480i (NTSC)
• Monitoring and control available via SNMP & web management
• Hot swappable redundant power supplies
• Standard 1RU chassis

Download Full Manual
