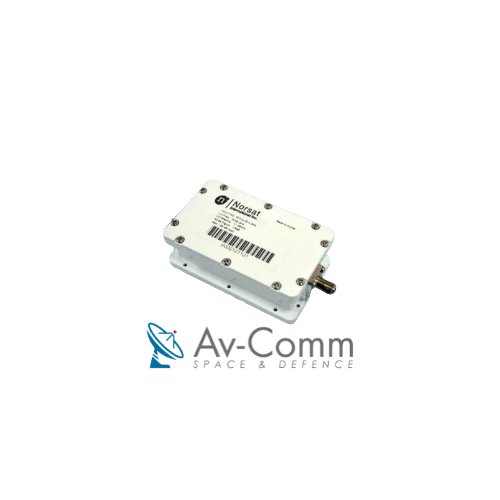

Norsat 9200HT-3F 9000 Ka-Band Triple Band LNB
$5,100.00 AUD
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world
Description
Description
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible.
Key Features
| Parameter | Value |
| Noise Figure | 1.6 dB typ., 2.0 dB max. at room temp. @ CF |
| L.O. Stability | ±25 kHz |
| Phase Noise (SSB) max. | -70 dBc/Hz at 1kHz -80 dBc/Hz at 10kHz -90 dBc/Hz at 100 kHz |
| input VSWR | 2.5: 1 max. |
| Output VSWR | 2.2: 1 max. |
| Gain | 65 dB typ., 58 dB min, 70 dB max. |
| Gain Flatness | ≤ 4 dB p- maxp |
| Output P1dB | + 5 dBm min. |
Additional information
Additional information
| Weight | 0.700 kg |
|---|---|
| Dimensions | 12 × 5 × 5 cm |
| Frequency Band | |
| SKU | LKA9200HT-3F |
