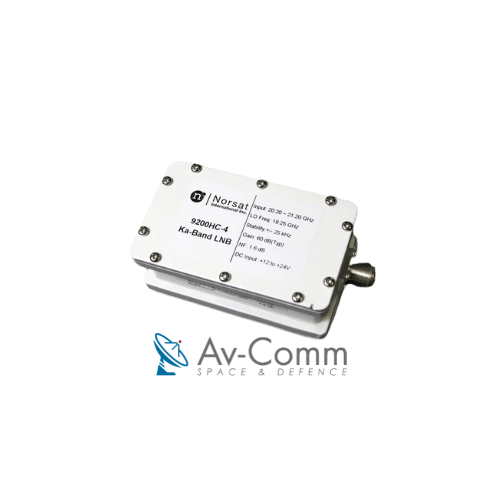

Norsat 9200HAN-4 9200 Single-Band Ka-Band PLL LNB
Description
Description
9200 Single-Band Ka-Band PLL LNB
Key Features
| Parameter | Value |
| Noise Figure | 1.3dB typ., 1.6 dB max. at room temp. @ CF 1.5dB typ., 1.8 dB max. at room temp. @ CF |
| L.O. Stability | ± 25 kHz, ± 50kHz |
| Phase Noise (SSB) max. | -70 dBc at 1 kHz -80 dBc at 10 kHz -95 dBc at 100 kHz |
| Gain | 60 dB typ., 55 dB min., 65dB max. @ full frequency band |
| Output P1dB | + 5 dBm min. |
| DC Power | +12V to +24V DC |
Additional information
Additional information
| Weight | 0.700 kg |
|---|---|

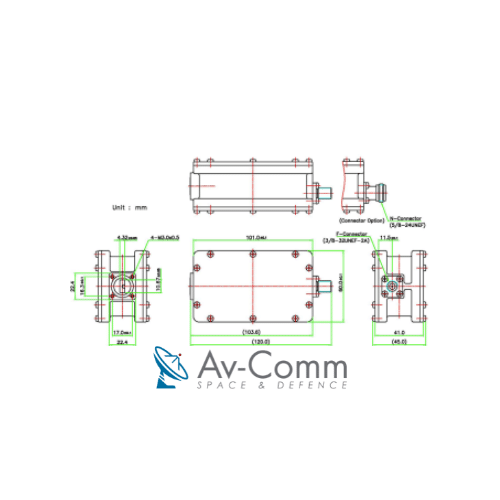

| Dimensions | 15 × 9 × 5 cm |
| Frequency Band | |
| SKU | LKA9200HAN-4 |
