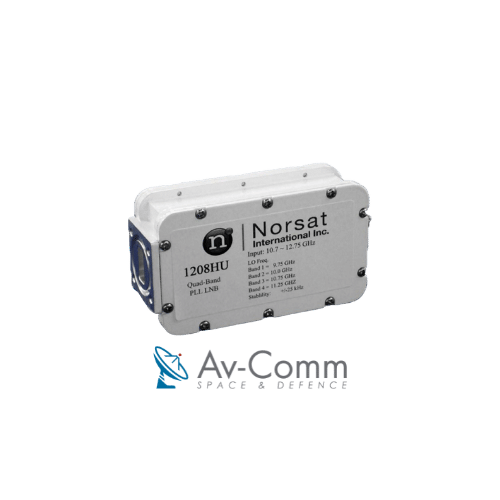

Norsat 1208HUN Ku Band Quad LNB
$2,624.00 AUD
The Norsat 1208HUN Ku Quad Band LNB provide a quad (4) frequency band inputs of 10.7-11.7GHz, 10.95-11.7GHz, 11.7-12.75GHz, and 12.25-12.75GHz. The Norsat 1208HUN Ku Quad Band LNB switches between frequency bands using a combination of voltage (13v or 18v) and 22kHz tone. The Norsat 1208HUN Ku Dual Band PLL LNB utilises an internal reference to…
Description
Description
The Norsat 1208HUN Ku Quad Band LNB provide a quad (4) frequency band inputs of 10.7-11.7GHz, 10.95-11.7GHz, 11.7-12.75GHz, and 12.25-12.75GHz. The Norsat 1208HUN Ku Quad Band LNB switches between frequency bands using a combination of voltage (13v or 18v) and 22kHz tone. The Norsat 1208HUN Ku Dual Band PLL LNB utilises an internal reference to provide a stability of +/-25kHz to all four local oscillators. The Norsat 1208HUN Ku Dual Band PLL LNB is fitted with an N type output connector with a 50Ω impedance.
The Norsat 1208HUN Ku Quad Band LNB is ideal for use on earth station antenna that require access to the full frequency range of one or many satellites. The development of High Throughput Satellites (HTS) means that ground station and gateway terminals increasingly need access to greater frequency bands to support high throughput operations.
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ku-Band |
| Input Frequency Band 1 | Ku-Band: 10.70 – 11.70 GHz |
| Input Frequency Band 2 | Ku-Band: 10.95 – 11.70 GHz |
| Input Frequency Band 3 | Ku-Band: 11.70 – 12.75 GHz |
| Input Frequency Band 4 | Ku-Band: 12.25 – 12.75 GHz |
| Lo Stability | +/- 25 kHz |
| Lo Type | PLL |
| Noise Figure | 0.8 dB typ., 1.0 dB max. |
| Output Frequency 1 | L-Band: 950 – 1950 MHz |
| Output Frequency 2 | L-Band: 950 – 1700 MHz |
| Output Frequency 3 | L-Band: 950 – 2000 MHz |
| Output Frequency 4 | L-Band: 950 – 1450 MHz |
| Product Family | 1000 Series |
| RF SPECIFICATIONS | |
|---|---|
| Control Signal 1 | 13 V |
| Control Signal 2 | 13 V / 22KHz Tone |
| Control Signal 3 | 18 V |
| Control Signal 4 | 18 V / 22KHz Tone |
| Conversion Gain | 60 dB typ |
| Lo Frequency 1 | 9.75 GHz |
| Lo Frequency 2 | 10.00 GHz |
| Lo Frequency 3 | 10.75 GHz |
| Lo Frequency 4 | 11.30 GHz |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Temperature Operational | -40 to +60°C |
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. Norsat offer premium performance and reliability in the smallest form factor possible. All of Norsat’s standard LNBs are backed by a 1 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. STEP Electronics is the distributor for Norsat products in Australia, New Zealand, and the South Pacific Islands. STEP Electronics carriers stock in Australia and can facilitate rapid dispatch to your location.
