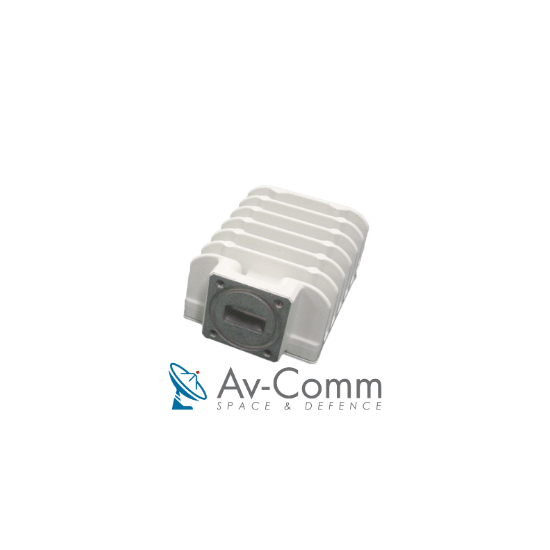

NISD NJT8301F Mini 1.5W Ku Band BUC
$710.23 AUD
The NISD NJT8301F Mini 1.5W Ku Band BUC is designed for use on Ku Band VSAT remote antenna terminals. NISD NJT8301F Mini 1.5W Ku Band BUC is ideally suited to low power applications such as SCADA or IoT networks.
Description
Description
The NISD NJT8301F Mini 1.5W Ku Band BUC is designed for use on Ku Band VSAT remote antenna terminals. NISD NJT8301F Mini 1.5W Ku Band BUC is ideally suited to low power applications such as SCADA or IoT networks.
Key Features
| Feed mountable |
| RF Output Frequency: 14 – 14.5 GHz |
| IF Frequency: 950 to 1450 MHz |
| Output Power @ P1dB: 1.5W (+31 dBm min) |
| Power Consumption: 12 W max |
| DC Power Requirement: +36 to +60 VDC |
| Wide Operating Temperature range -40°C to +60°C |
| RoHS Compliant |
| Waterproof with IP65 standard |
