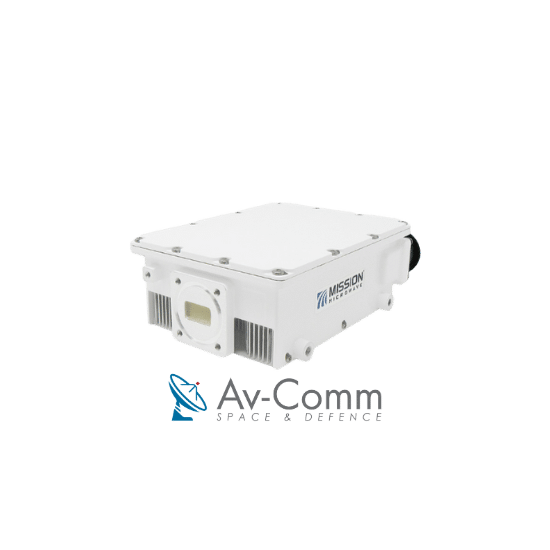

Mission Microwave Ku-Band 25 watt Thin-Line Cube BUC

Name: Mission Microwave Ku-Band 25 watt Thin-Line Cube BUC - Av-Comm Space & Defence
Brand: Misson Microwave
SKU: MMKU25WTLCBUC

Misson Microwave

Mission Microwave 25 watt Ku-Band Thin-Line Cube BUC provides 16 watts of linear power in a compact 2.0 lb package often suitable for direct mounting on the feed or OMT input port.

Request a Formal Quotation

Description

Mission Microwave 25 watt Ku-Band Thin-Line Cube BUC provides 16 watts of linear power in a compact 2.0 lb package often suitable for direct mounting on the feed or OMT input port. It is ideal for design of fly-away terminals, compact terminals and as an easy to implement upgrade to existing terminals. The RF performance of the Ku-Band Cube is similar to the Ku-Band Flatpack BUC, and the rugged design and high reliability of this BUC make it an obvious choice for mission critical VSATs and SATCOM terminals. The Ku-Band Cube can be powered via a single M&C/DC-Power connector. The Ku-Band Cube is widely deployed on a variety of commercial and government programs.

Key Features

Parameter	Value
Model	Cube-Ku-25
Transmit Band	Ku
Frequency	13.75-14.5 standard (also available as 14.0-14.5 GHz)
Rated Power	44 dBm / 25 watt
Linear Power (single carrier spectral regrowth)	42 dBm / 16 watt
Linear Power (two tone intermodulation)	41 dBm / 12.6 watt
Options	Single Band 29-30GHz, Single Band 30-31 GHz, Dual Band
M&C	Ethernet via Mission GUI or SNMP V3, Serial RS-485 or RS-232
Status	Production
Configuration Options	M&C Interface, Color, Keyline
