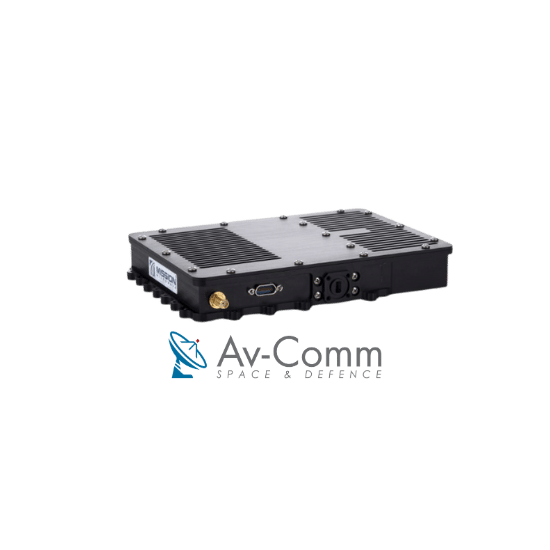

Mission Microwave Ku-Band 25 watt Flatpack BUC
Mission Microwave 25 watt Ku-Band Flatpack BUC provides 16 watts of linear power in a 1.75 lb package. It is ideal for an integrated design into compact terminals and is used in several flat panel antenna terminals available on the market.
Description
Description
Mission Microwave 25 watt Ku-Band Flatpack BUC provides 16 watts of linear power in a 1.75 lb package. It is ideal for an integrated design into compact terminals and is used in several flat panel antenna terminals available on the market. The RF performance of the Ku-Band Flatpack is identical to the Ku-Band Cube BUC and the compact shape and high level of integration of this BUC make it perfect for inclusion in flat panel antennas and embedded designs.
Key Features
| Parameter | Value |
| Model | Flatpack-Ku-25 |
| Transmit Band | Ku |
| Frequency (GHz) | 13.75-14.5 (also 14.0-14.5 GHz) |
| Rated Power | 44 dBm / 25 watt |
| Linear Power (single carrier spectral regrowth) |
42 dBm / 16 watt |
| Linear Power (two tone intermodulation) |
41 dBm / 12.6 watt |
| M&C | Serial RS-485 or RS-232 |
| Status | Production |
| Configuration Options | M&C Interface |
Additional information
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 13 × 18 × 3 cm |
| SKU | WMKA25WFPBUC |
