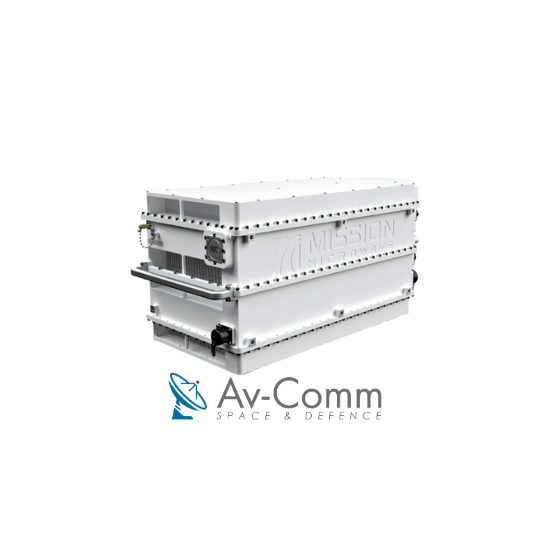

Mission Microwave Ku-Band 1 kilowatt MOAB BUC
Mission Microwave Ku-Band 1 kilowatt MOAB BUC is ideal for TWTA replacement and for multi-carrier terminals and gateways.
Description
Description
Mission Microwave Ku-Band 1 kilowatt MOAB BUC is ideal for TWTA replacement and for multi-carrier terminals and gateways. The small size and weight of this high-power BUC allows for a redundant system to be mounted in the hub of most antennas. The energy efficiency, thermal performance and compact design make it a valuable upgrade for teleports and gateways.
Key Features
| Parameter | Value |
| Model | MOAB-Ku-1 kilowatt rated power – 400 watt Linear |
| Transmit Band | Ku |
| Frequency | 13.75-14.5 (also 14.0-14.5 GHz) |
| Rated Power | 60 dBm / 1000 watt |
| Linear Power (single carrier spectral regrowth) | 58 dBm / 630 watt |
| Linear Power (two tone intermodulation) | 57 dBm / 500 watt |
| Linear Power (-19dB NPR) | 56dBm / 400 watt |
| M&C | Ethernet via Mission GUI or SNMP V3, Serial |
| Status | Initial Production |
| Configuration Options | MM&C Interface, Colour |
Additional information
Additional information
| Weight | 27 kg |
|---|---|
| Dimensions | 58 × 27 × 27 cm |
| SKU | WMKU1KWMOABBUC |
