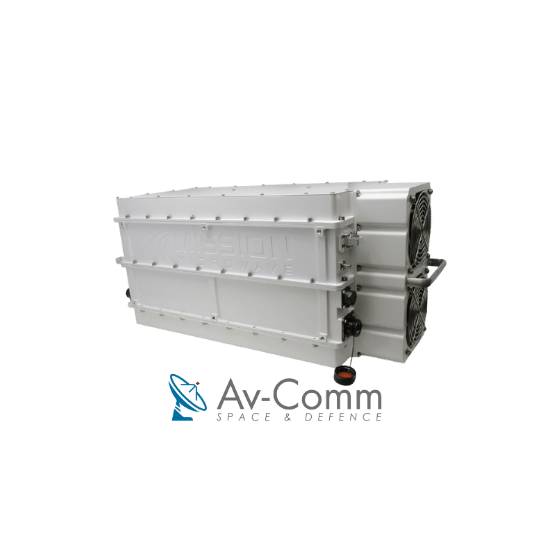

Mission Microwave Ka-Band 400 watt MOAB SSPA
Mission Microwave 400W Wideband MOAB Ka-Band Solid State Power Amplifier is the industry’s most compact & lightweight 400W solid state power amplifier.
Description
Description
Mission Microwave 400W Wideband MOAB Ka-Band Solid State Power Amplifier is the industry’s most compact & lightweight 400W solid state power amplifier. Mission Microwave’s proprietary power combining technology and thorough system optimisation have produced a rugged 55 lb amplifier that mounts directly on the antenna structure, eliminating excess losses to the feed.
The revolutionary design features a compact form factor which will be a drop-in replacement for the most popular TWTAs. Improved cooling equates to higher reliability, even in the most demanding of applications and extreme environments (-40°C to+60°C). The SSPA’s stellar performance offers the highest useable output power for the lowest power consumption of any amplifier in its class.
Key Features
| Parameter | Value |
| Model | MOAB-Ka-400 SSPA |
| Transmit Band | Ka |
| Transmit Frequency | 27.5-30.0 GHz (other frequency ranges available) |
| Rated Power | 56.2 dBm / 417 watt |
| Linear Power (two tone intermodulation) |
53.2 dBm / 209 watt |
| Linear Power (-19dB NPR) | 52.2 dBm / 166 watt |
| M&C | Ethernet via Mission GUI or SNMP V3, Serial |
| Status | Production |
| Configuration Options | M&C Interface, ALC, available in BUC configurations |
Additional information
Additional information
| Weight | 25 kg |
|---|---|
| Dimensions | 57 × 27 × 27 cm |
| SKU | WMKA400WMOABSSPA |
