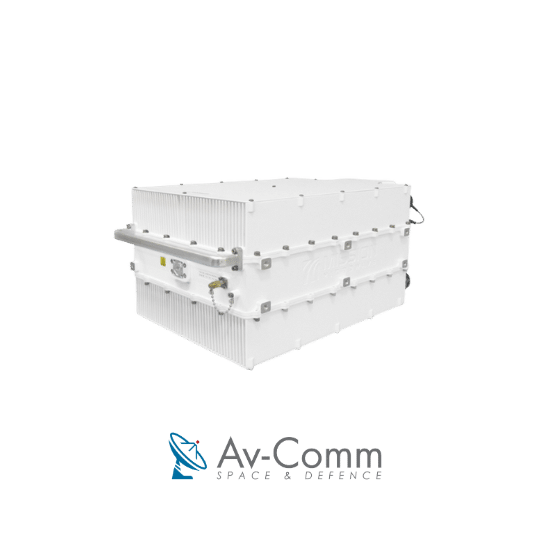

Mission Microwave Ka-Band 250 watt MOAB BUC
Mission Microwave 250W MOAB Block Upconverter is the industry’s most compact & lightweight Wideband Ka-Band 250W solid state power amplifier.
Description
Description
Mission Microwave 250W MOAB Block Upconverter is the industry’s most compact & lightweight Wideband Ka-Band 250W solid state power amplifier. Mission Microwave’s proprietary power combining technology and thorough system optimisation have produced a rugged 35 lb amplifier that mounts directly on an antenna boom, eliminating excess losses to the feed.
The revolutionary design features a compact form factor which provides improved cooling over more conventional package designs. Improved cooling equates to higher reliability, even in the most demanding of applications and extreme environments (-40°C to +60°C). The BUC’s stellar performance offers the highest useable output power for the lowest power consumption of any amplifier in its class.
Key Features
| Parameter | Value |
| Model | MOAB-KA_-250 |
| Transmit Band | Ka |
| Transmit Frequency | 29-30 GHz / 30-31 GHz |
| Rated Power | 54 dBm / 250 watt |
| Linear Power (single carrier spectral regrowth) | 52 dBm / 160 watt |
| Linear Power (two tone intermodulation) | 51 dBm / 125 watt |
| M&C | Ethernet via Mission GUI or SNMP V3, Serial |
| Status | Production |
| Configuration Options | M&C Interface, Colour |
Additional information
Additional information
| Weight | 16 kg |
|---|---|
| Dimensions | 58 × 27 × 27 cm |
| SKU | WMK250WMOABBUC |
