M2 Antenna Systems, Inc Dish Feed, S-Band / X-Band Dual-Band 1.95-3.05 GHz / 7.0-8.5 GHz

Description

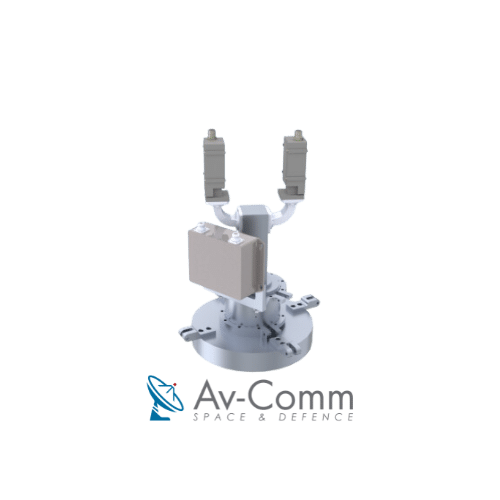

The M2 Antenna Systems, Inc. FGFD-2-SC-XC-1, Dual-Band feed is designed for either Prime-Focus or Compact Cassegrain configured reflectors. The Dual-Circular S-Band section can support power levels in excess of 100 Watts for transmit applications. Band coverage in S-Band is from 1.5-3.05 GHz (Customer Specific), using precision “N” interface connections.

The Dual-Circular X-Band section can support power levels in excess of 1 kW for transmit applications and covers the 7.0-8.5 GHz (Customer Specific) frequency range. The interface for X-Band is via the industry standard WR-112 waveguide flanges.

Using proprietary Frequency- Selective (FFS) designs, M2 Antenna Systems, Inc, can fit multiple feeds on beam, increasing the capabilities of new or legacy reflectors. If your project is pressed for time, The M2 Engineering staff is ready to assist in sourcing, selection and design of the RF front end electronics, LNA’s, LNB’s, BUC’s, Amplifiers, RF Cabling and referencing.
