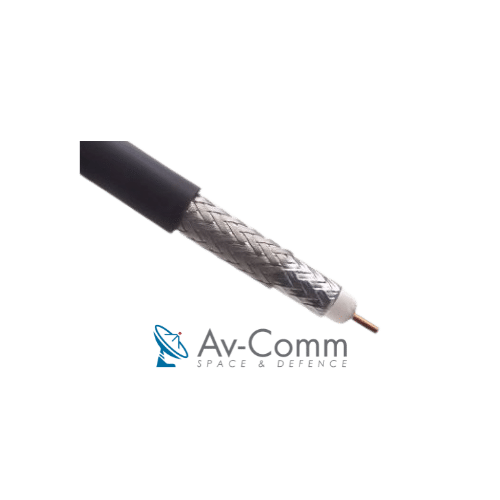

LMR-400-75 Ohm Low Loss Coaxial Cable
LMR-400-75 Ohm is a UV resistant, low loss, shielded coaxial cable ideal for use on satellite and terrestrial communication systems. The primary feature of LMR-400 is its low loss performance which is comparable to traditional hardline style cables. LMR-400 can be used with a variety of connectors which are also available from Av-Comm.
Description
Description
LMR-400-75 Ohm is a UV resistant, low loss, shielded coaxial cable ideal for use on satellite and terrestrial communication systems. The primary feature of LMR-400 is its low loss performance which is comparable to traditional hardline style cables. LMR-400 can be used with a variety of connectors which are also available from Av-Comm.
- Minimium Bend Radium 254mm
- Weight 1kg per metre
- Electrical Specifications
- Maximium Operating Frequency (GHz) 2.5GHz
- Impedance 75 ohms
- Peak Power (kW) 10kW
Key Features
| Frequency (MHz) |
30 | 50 | 150 | 220 | 450 | 900 | 1500 | 1800 | 2000 |
| Attenuation db/100 feet (MHz) | 0.6 | 0.8 | 1.5 | 1.8 | 2.6 | 3.7 | 4.9 | 5.4 | 5.7 |
| Attenuation db/100 m | 2.1 | 2.7 | 4.8 | 5.8 | 8.4 | 12.1 | 16.0 | 17.6 | 18.7 |
| Avg. Power kW |
2.99 | 2.31 | 1.32 | 1.08 | 0.74 | 0.52 | 0.93 | 0.35 | 0.33 |
Additional information
Additional information
| Weight | 0.21 kg |
|---|---|
| Dimensions | 11 × 5.4 cm |
| SKU | c1009 |
