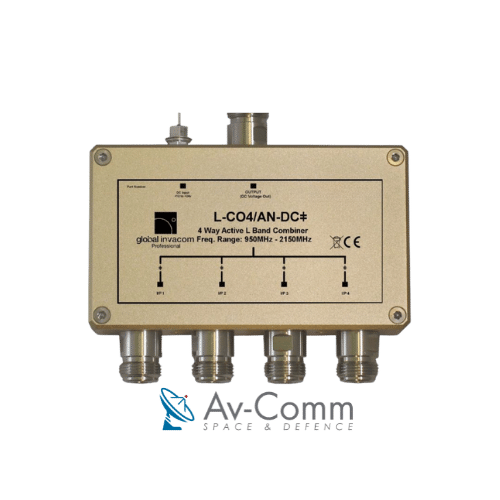

L Band 4 Way Active Combiner
$457.69 AUD
The L Band Active 4-way Combine has been designed to combine the L band from a typical satellite system with negligible insertion loss. Port one will allow DC to pass through from the receiver through to the combined input port. All other ports are DC blocked.
Description
Description
- EMI-proof enclosure
- Low insertion loss
- High Isolation
- N type, F type, BNC and SMA connectors available
Please note that Active Combiners cannot be used as Active Splitters.
L-Band combiners can also be supplied as rack mount solutions.
Key Features
| Weight | 0.4kg |
| Frequnecy Pass | 950MHz – 2150MHz |
| Through Loss | 0dB +/-0.5dB |
| Port to Port Isolation | +20dB |
| Return Loss | +15dB |
| Supply Voltage | 12 -48V DC |
| Max DC Current Handling | 1 Amp |
| Current Consumption | 60mA |
| Dimensions | 116mm x 66mm x 26mm |
Additional information
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 116 × 66 × 6 cm |
| Frequency Band | |
| SKU | X1605 |
