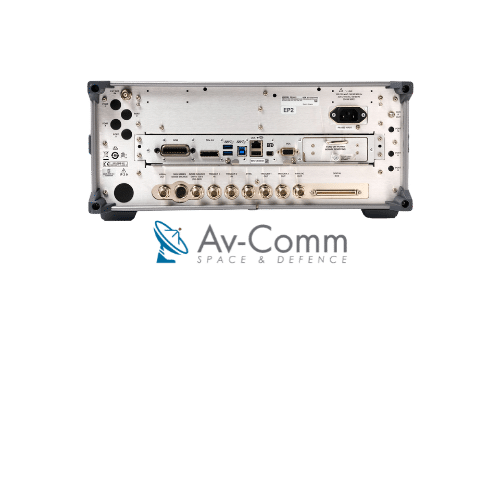

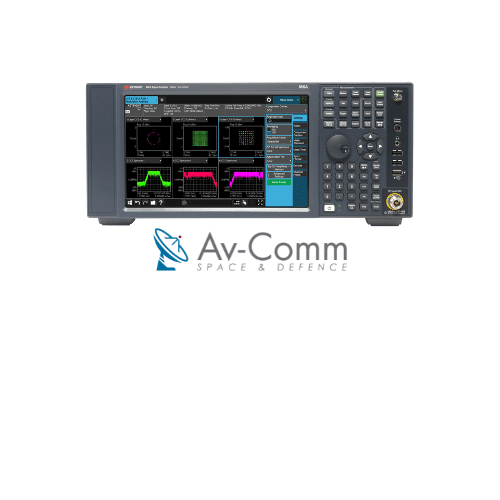

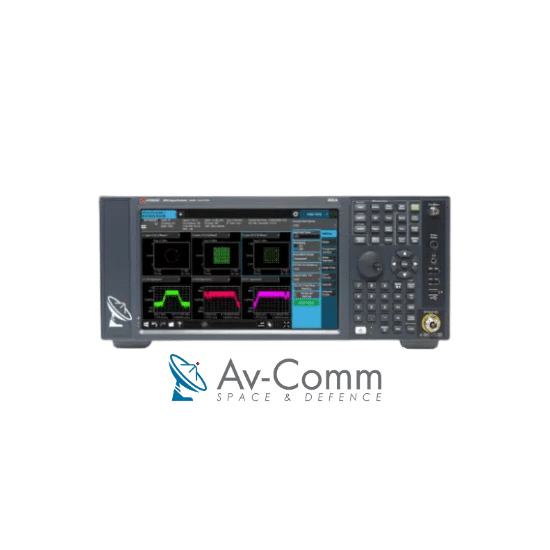

Keysight N9020B MXA Signal Analyser, 10 Hz to 50 GHz
N9010B EXA Signal Analyser addresses diverse needs with a solid mix of speed and performance and the versatility of PathWave X-Series measurement applications
Price Guide : $104,190.00- $272,400.00 AUD
Description
Description
Keysight N9020B built for wireless device test, the MXA signal analyser helps you characterise signals from virtually any wireless device quickly and confidently with up-to-date parametric or RF functional tests. The intuitive multi-touch interface minimizes measurement complexity, even when working with cutting-edge devices.
- See more with a wide frequency range of 10 Hz to 50 GHz with up to 160 MHz analysis bandwidth
- Shorten test times with hardware-accelerated power measurements, rapid display updates, rapid marker peak searches, and fast sweeps
- Get complete signal characterisation by capturing longer I/Q samples
- Accurately analyse complex signals with EVM as low as 0.3 percent (–50 dB)
- Simplify testing with one-button measurements using PathWave X-Series measurement applications
- Capture elusive or transient signals with full-band real-time spectrum analysis
Key Features
| Parameter | Value |
| Frequency | 50 GHz |
| DANL @1 GHz | -172dBm |
| Maximum Analysis Bandwidth | 160 GHz |
| Maximum Real Time Bandwidth | 160 GHz |
| Phase Noise @1 GHz (10 kHz offset) | -114 dBc/Hz |
| Type | Signal Analyser |
Additional information
Additional information
| Weight | 31 kg |
|---|---|
| Dimensions | 37 × 43 × 18 cm |
| SKU | KSN9020B |
