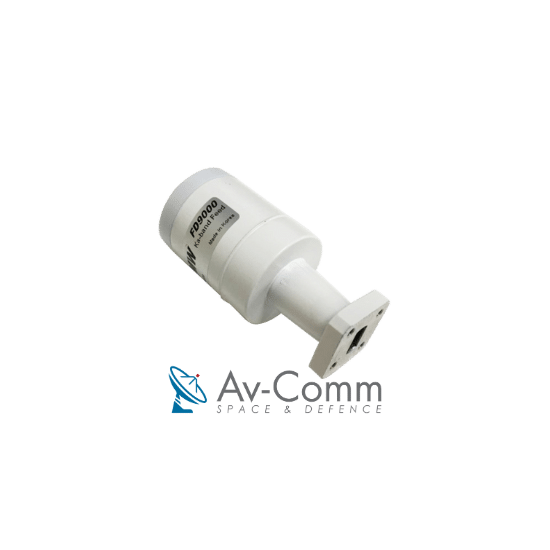

Ka Band Single Polarity Feedhorn
$240.00 AUD
Our Ka Band Single Polarity Feedhorn utilises a WR-41 waveguide flange to interface with most Ka Band LNBs. Our Ka Band Single Polarity Feedhorn is optimised for signals in the 18.2-26 GHz range and is designed to be mounted on a prime focus antenna.
Description
Description
Ka Band Single Polarity Feedhorn utilises a WR-41 waveguide flange to interface with most Ka Band LNBs. Our Ka Band Single Polarity Feedhorn is optimised for signals in the 18.2-26 GHz range and is designed to be mounted on a prime focus antenna.
Ka Band Single Polarity Feedhorn has 2 options:
- L: 18.2 – 20.2 GHz
- H: 20.2 – 22.2 GHz
Key Features
| Parameter | Value |
| Frequency Rage | L: 18.2 – 20.2 GHz H: 20.2 – 22.2 GHz |
| VSWR | 1.5 : 1 |
| Gain | 15 dBi |
| Gain Flatness | ±1.5 dBi |
| 3 dB BW | ±15 ° |
| Polarisation | Horizontal or Vertical |
| Axial Ratio | 1.5 : 1 |
| Input VSWR | 2.0 : 1 |
| Side Band Level | -20 dB max |
| Isolation (H vs V) | -25 dBc max |
| Operating Temperature | -30 – +50degC |
| Input Waveguide | Circular waveguide |
| Output Waveguide | WR 42 |
Additional information
Additional information
| Weight | 2 kg |
|---|---|

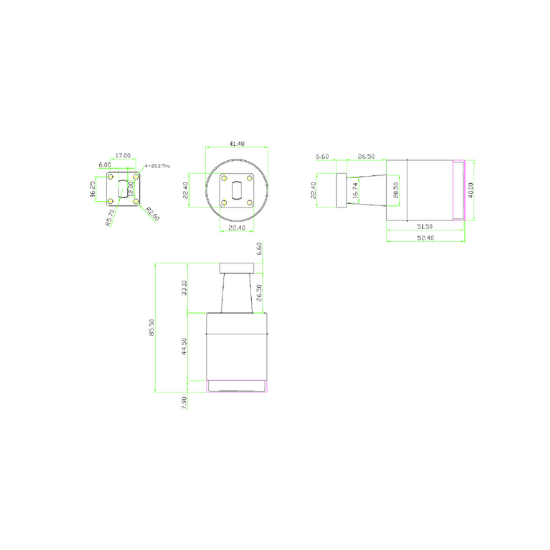

| Dimensions | 14.5 × 12 × 15 cm |
| Frequency Band | |
| SKU | F5000 |
