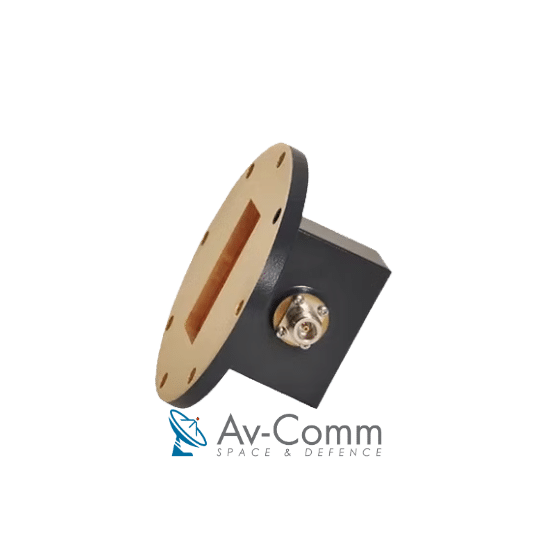

C Band WR187 Waveguide to Coax Adapter with SMA Type Connector
Description
Description
This Waveguide to Coax Adapter converts C Band WR187 to an SMA Type coax connector. Waveguide adapters are designed to interconnect the RF microwave interface of a device such as a BUC or HPA to another device with a coax cable interface such as a up/downconverter, lineariser, or modem.
Note: Hardware and gaskets are not included and should be ordered separately.
We offer an additional test & calibration service whereby our technical team can provide sweep testing of cables and waveguide to measure and document specific performance data for each assembly. We also recommend all cable and waveguide assemblies are temperature cycled; this normalises any dielectric and gasket seating ensuring optimum performance and overall stability of the assembly.
Av-Comm’s technical team is available to provide advice and consulting on appropriate coaxial, waveguide, and optical assemblies for site specific and project specific applications. Contact our team today to discuss your requirement.
Key Features
| Parameter | Value |
| Waveguide Size | WR187 (C Band) |
| Connector Type | SMA Type (male or female) |
| Frequency Range | 3.95-5.85GHz |
| VSWR | 1.25:1 |
| Flanges | CPR Flat or CPR Grooved (customer specified) |
| Flange Material | 6061 Aluminium |
| Material Finish | Blue Anodised |
*Data sheets provided are to be used as a generic technical guide
only, Av-Comm may substitute manufacturers for waveguide
products if they offer equal or improved performance.
