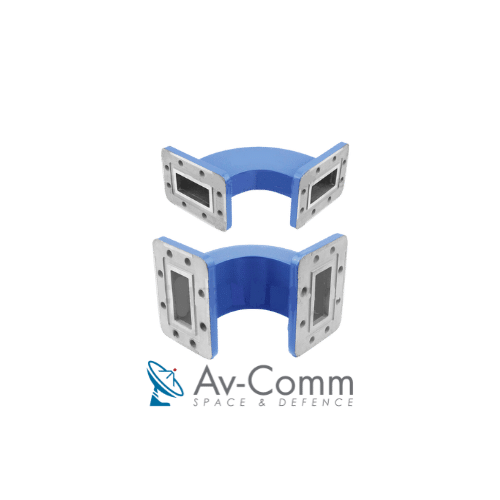

F Band WR159 Waveguide Sweeping H Plane Bend 90 Degrees
This F Band WR159 Waveguide Sweeping H Plane Bend 90 Degrees provides a low loss RF component capable of handling high power with high isolation. The term ‘WR’ stands for ‘Waveguide Rectangular’ and the number indicates the waveguide dimensions inner width in hundredths of an inch.
Description
Description
This F Band WR159 Waveguide Sweeping H Plane Bend 90 Degrees provides a low loss RF component capable of handling high power with high isolation. The term ‘WR’ stands for ‘Waveguide Rectangular’ and the number indicates the waveguide dimensions inner width in hundredths of an inch.
Our F Band WR159 Waveguide Sweeping H Plane Bends are commonly used for RF and microwave waveguide applications requiring minimal signal loss that is not possible when using coaxial cable.
Note: Hardware and gaskets are not included and should be ordered separately.
Key Features
| Parameter | Value |
| Hardware | Rigid Waveguide |
| Waveguide Size | WR159 (F Band) |
| Frequency Range | 4.9-7.05GHz |
| Insertion Loss | 0.15dB |
| VSWR | 1.05:1 |
| Bend Type | H Plane |
| Flanges | CPR Flat or CPR Grooved (customer specified) |
| Flange Material | 6061 Aluminum |
| Material Finish | Blue Anodised |
Additional information
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 30 × 5 cm |
| Frequency Band | |
| SKU | WR15990H |
