EW132-140 Standard Elliptical Waveguide
Description
Description

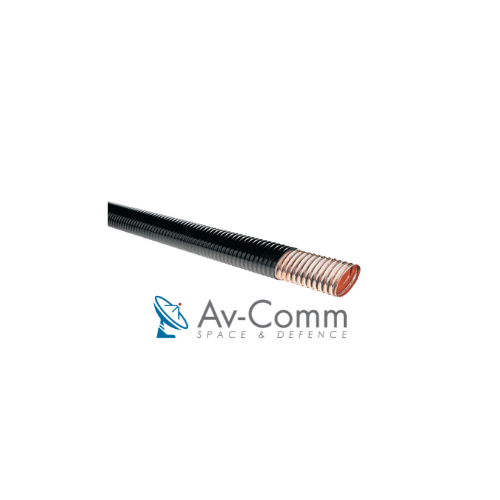

Andrew EW132-140 HELIAX Standard Elliptical Waveguide, 14.0 – 14.5 GHz, black PE jacket. This elliptical waveguide is used for standard KU band installations where the TWT or SSPA is located some distance from the antenna.
We offer an additional test & calibration service whereby our technical team can provide sweep testing of cables and waveguide to measure and document specific performance data for each assembly. We also recommend all cable and waveguide assemblies are temperature cycled; this normalises any dielectric and gasket seating ensuring optimum performance and overall stability of the assembly.
Av-Comm’s technical team is available to provide advice and consulting on appropriate coaxial, waveguide, and optical assemblies for site specific and project specific applications. Contact our team today to discuss your requirement.
Key Features
| Parameter | Value |
| Operating Frequency Band | 14.0-14.5 GHz |
| eTE11 Mode Cutof | 9.2220 GHz |
| Group Delay | 131 ns/100ft @ 14.70 GHz |
| 428 ns/100ft | @ 14.70 GHz |
| Return Loss | 14.0-14.5 GHz |
| VSWR | 1.15 |
| Return Loss (dB) | 23.10 |
| Power Connector | Optional |
| Coax Connectors | N-Type or SMA |
| Material | 80% Aluminium |
| Finish | Lusteron on Waveguide, Anodize on Driver |
| Operating Temp | -40° to +75°C |
| Non- Operating Temp | -50°T0 +100°C |
| Humidity | 100% |
*Data sheets provided are to be used as a generic technical guide
only, Av-Comm may substitute manufacturers for waveguide
products if they offer equal or improved performance.
Additional information
Additional information
| Weight | 0.21 kg |
|---|---|
| Dimensions | 11 × 5.4 cm |
| SKU | EWG132-140 |
