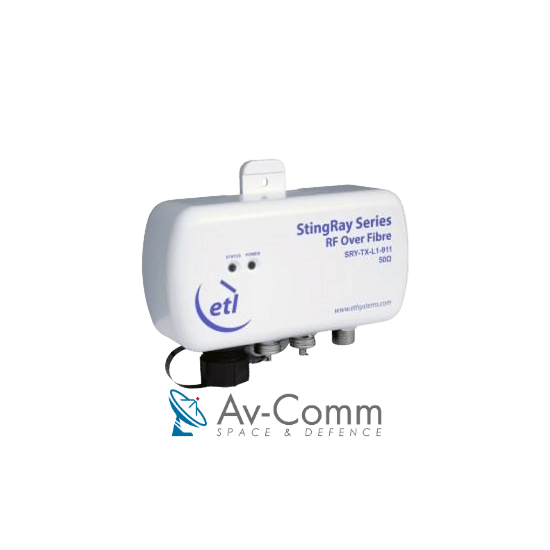

ETL SRY-TX-L1-911

Name: ETL SRY-TX-L1-911 - Av-Comm Space & Defence
Brand: ETL System
SKU: ETLSRYTXl1911

ETL’s range of component products for Global Positioning System (GPS) and the broader Global Navigation Satellite System (GNSS) applications.

Description

ETL’s range of component products for Global Positioning System (GPS) and the broader Global Navigation Satellite System (GNSS) applications.

Compact weatherproof, IP65 housing
Antenna fail alarm pass through at the indoor receiver output
Power provided for active antennas, 12V, 500 mA, short circuit protected
LED indicators for module & antenna power and RF status
Redundant hot swap external power supply
For use with ETL’s GPS receive unit models SRY-RX-L1-466 (standalone) & SRY-RX-L1-266 (19” rack mounted

Available with RF connector options:

Parameter	Value
Frequency Range	850-2450 MHz (Extended L-band)
Return Loss (db)	Typical: 15 dB 50Ω N-Type Minimum: 10 dB 50Ω N-Type
OIP3	-21 dBm (Typical Link: 1.5 GHz, -50dBm in & out. Fixed gain)
CNR (in any 4 MHz)	41 dB (Typical Link: 1.5 GHz, -50dBm in & out. Fixed gain)
SFDR	90 dB/Hz2/3 (Typical Link: 1.5 GHz, -50dBm in & out.)
Max RF Input	16 dBm total power (Damage level, NOT operational)
Input AGC	-10dBm Max (Inc. Noise) -60 dBm Min (Min I/P for max O/P)
Noise Figure	17 dB (Typical Link: 1.5 GHz, -50dBm in & out)
Laser Type	-40 dB, between adjacent modules in same chassis
Laser Type	DFB (Two stage optical isolator for improved performance)
Optical Wavelength	1310 ± 10 nm
Optical Power	3.8 ± 2.5 dBm
Power Consumption	5W
MTBF	> 120,000 hours
RF Connectors	N-Type 50 Ω and 75 Ω F-type – other connector types may be available upon request
Optical Connectors	Senko IP-SC/APC
Power Connectors	LEMO EEL.1K.304.CLA
