ETL SRY-xTxR-90xx-yyzz

Name: ETL SRY-xTxR-90xx-yyzz - Av-Comm Space & Defence
Brand: ETL System
SKU: ETLSRYTXR90

ETL compact RF over fibre system covering 500 to 3150 MHz for links up to 10km, with ruggedised ODU and IDU options for durable, space-saving solutions.

Request a Formal Quotation

Description

ETL compact RF over fibre system covering 500 to 3150 MHz for links up to 10km, with ruggedised ODU and IDU options for durable, space-saving solutions.

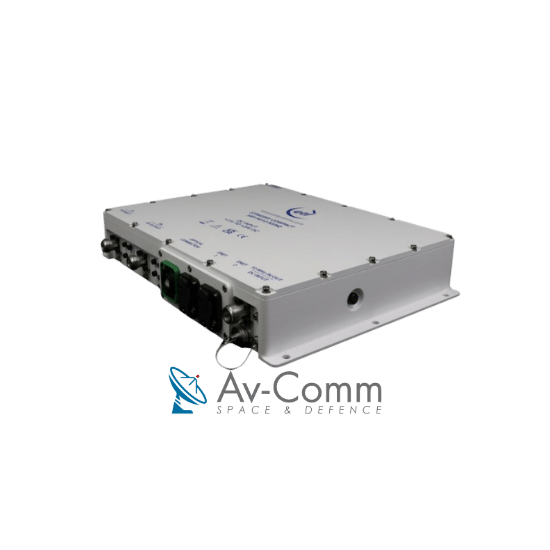

An optical transmit and receive RF over fibre system, with options to cover 500 to 3150 MHz, for links up to 10km. The ODU is built in a compact and ruggedised EMC sealed housing and the IDU can either be a standard
19” rack mount chassis or also in an ODU housing making for an overall more ruggedised compact solution. The fibre system consists of up to 6 transmission paths. These can be a combination of uplinks, downlinks, 10MHz or Ethernet, with a variety of connector options and configurations. IP65 rated DC PSUs for the Outdoor unit can be supplied as can optical cross site cables

Wide range of operating frequencies
For links up to 10km
10MHz reference signal input for up and downlinks
Variable gain on RX and TX models for enhanced signal control
Local & Remote control & monitoring via RJ45 Ethernet port and web browser interface
IP65 rated
3-year warranty as standard

Key Features

Parameter	Value
RF channel config Options (Various Options covering 500 MHz to 3150 MHz available)	Single RX or Single TX Dual RX or Dual TX Quad RX or Quad TX Single RX and Dual TX Dual RX and Single TX Dual RX and Dual TX 3x RX 3x TX
Other Options	Optical Ethernet LNB Powering Optical 10MHz 10MHz Ref output CWDM Mux (Only available with IS connector) Dual DC input on ODU Optical Cross site cables IP65 rated DC PSU for outdoor unit
RF Connectors	SC/APC – SA (IDU only) Expanded Beam Mini – EBM Senko IP SC/APC – IS (ODU only) Neutrik Quad – NQ
