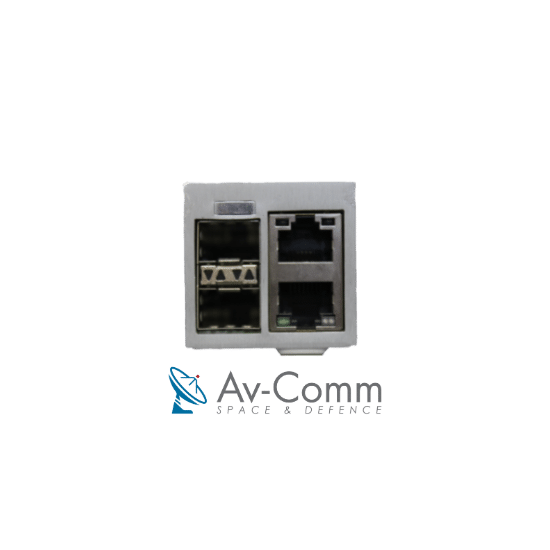

ETL SRY-G1S-DA-165
ETL StingRay Broadband Transmit and Receive RF Over Fibre modules to fit Genus 2U chassis.
Description
Description
ETL SRY-G1S-DA-165 is an electrical data to optical SFP module bi-directional link. The module is double width occupying two 1U chassis slots. There are two Ethernet Ports RJ-45 10/100/1000BASE-T and two Gigabit Ethernet SFP module slots; two fibres are required for each standard SFP slot, since the operation is bi-directional. Alternatively, BiDi SFP module could be used for single fibre operation.
Ports are connected via an unmanaged Ethernet switch. The SFP modules are available with LC optical connectors, flat polished. It is intended for use in ETL’s Genus 1U Series chassis and ODUs.
- Features 2 x Gigabit Ethernet SFP module slots and 2 x 10/100/1000BASE-T RJ45 ports
- Hot swap
- Secure protocols with SNMPv3 and HTTPS
- Local & Remote control & monitoring via RJ45 Ethernet port and web browser interface
- 3-year warranty as standard
Key Features
| Parameter | Value |
| Copper Ethernet Ports | 2×10/100/1000BASE-T RJ-45 (Up to Gigabit Ethernet) |
| Optical Ethernet Ports | 2x SFP module slot |
| Optical Connector | LC duplex, Single mode fibre (Other connector options are available upon request. Not angle polished) |
| Optical Wavelength | Customer Selectable |
| Power Consumption (W) | TBD (max. consumption at steady state) |
| Operating Temperature | -40 °C to +55 °C |
| Storage Temperature | -40 °C to 85 °C |
Additional information
Additional information
| Weight | .03 kg |
|---|---|
| Dimensions | 2 × 26 × 4 cm |
| SKU | ETLSRYG1SDA165 |
