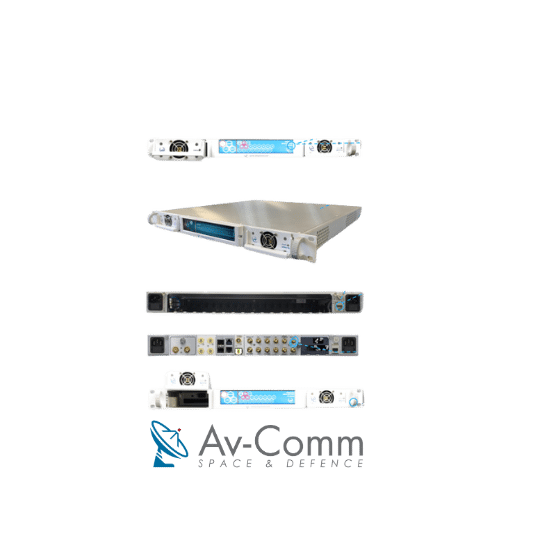

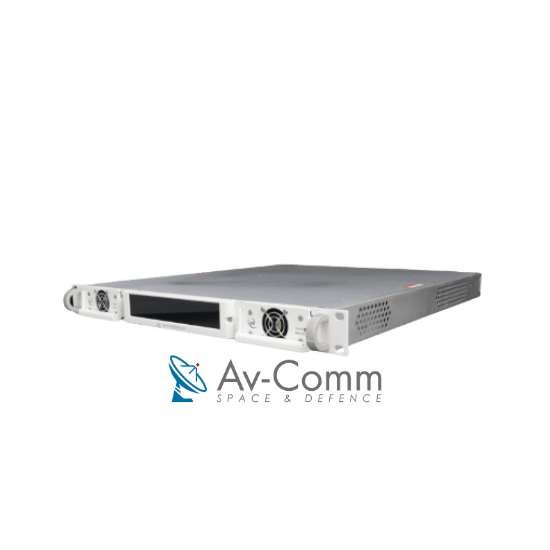

ETL GNS-106-1U Chassis
ETL’s GENUS 1U chassis offers exceptional flexibility with up to 17 configurable RF modules, integrated redundancy, hot-swap components, secure protocols, easy maintenance, and diverse module options.
Description
Description
ETL’s GENUS 1U chassis offers exceptional flexibility with up to 17 configurable RF modules, integrated redundancy, hot-swap components, secure protocols, easy maintenance, and diverse module options.
- Modular & flexible – configurable design housing up to 17 RF modules, which can be mixed
- Integrated RF module redundancy options
- Resilience from:
- Hot-swap modules
- Dual redundant & hot-swap PSUs
- Hot-swap fans
- Field replaceable CPU and HMI
- Option for integrated internal 10MHz reference source, also field replaceable
- Future proof and secure protocols including SNMPv3 and HTTPS
- Common spares and remote interfaces across different products allow Genus chassis to be easily maintained in service

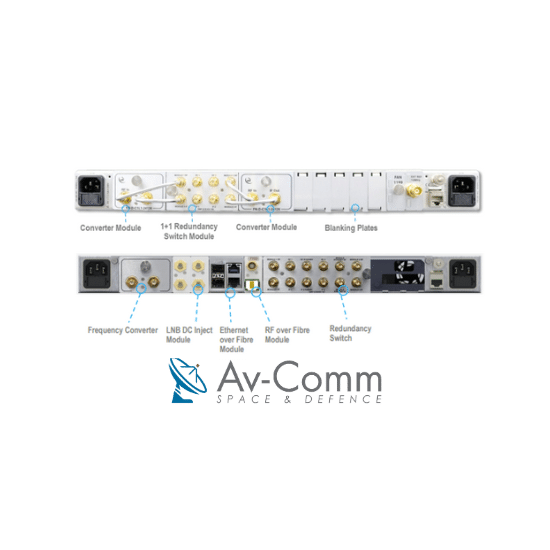

- Module options are frequency converters, matrices, RF over fibre, amplifiers, DC PSUs, switches & splitter/combiners
Key Features
| Parameter | Value |
| Capacity | Up to 17 RF modules |
| AC Power | 85-264V AC (50/60Hz) |
| AC Consumption | 275W Max. consumption at steady state |
| PSU | Dual redundant & alarmed, Diode OR, Hot-swap |
| RF Modules | Single, field replaceable |
| MTTR | 20 minutes |
| MTBF | Chassis: >250,000 & CPU: >250,000 |
| Field serviceable components |
RF modules, CPU & HMI. [Optional] internal & external 10MHz reference source |
| Hot-swap components |
Dual redundant power supplies |
| Local Control | HMI, capacitive touchscreen |
Additional information
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 4 × 30 × 4 cm |
| SKU | ETL1061U |
