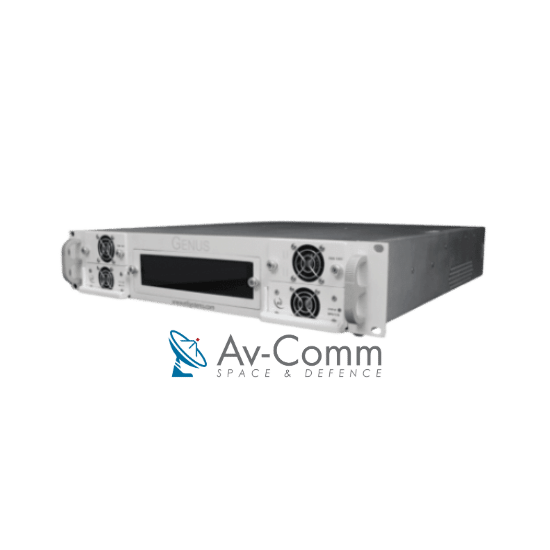

ETL GNS-102-2U Chassis

Name: ETL GNS-102-2U Chassis - Av-Comm Space & Defence
Brand: ETL System
SKU: ETL1022U

ETL’s GENUS 2U chassis offers a compact, high-performance solution with up to 17 configurable RF modules, integrated redundancy, hot-swap components, secure protocols, easy maintenance, and diverse module options.

Request a Formal Quotation

Description

The Genus is a new generation of equipment for the ground segment to meet today’s and future ground segment V/HTS requirements.

The 2U Genus chassis accommodates up to 17 RF modules. These can be inserted whilst the shelf is in service giving excellent levels of flexibility and resilience.

Modular & flexible – configurable design housing up to 17 RF modules, which can be mixed
Integrated RF module redundancy options
Resilience from:
- Hot-swap modules
- Dual redundant & hot-swap PSUs
- Hot-swap fans
- Field replaceable CPU and HMI
Option for integrated internal 10MHz reference source, also field replaceable
Future proof and secure protocols including SNMPv3 and HTTPS
Common spares and remote interfaces across different products allows Genus chassis to be easily maintained in service
Module options are frequency converters, matrices, RF over fibre, amplifiers, DC PSUs, switches & splitter/combiners

Key Features

Parameter	Value
Capacity	Up to 17 RF modules
AC Power	85-264V AC (50/60Hz)
AC Consumption	275W Max. consumption at steady state
PSU	Dual redundant & alarmed, Diode OR, Hot-swap
MTTR	20 minutes
MTBF	Chassis: >250,000 & CPU: >250,000
Field serviceable components	RF modules, CPU & HMI & Fans
Hot-swap components	Dual redundant power supplies
Local Control	HMI, capacitive touchscreen
Remote Control & Monitoring	Ethernet via RJ45, 10BaseT/100BaseTx ETL TCP/IP protocol, HTTPS SNMPv3 Built-in Web Server
