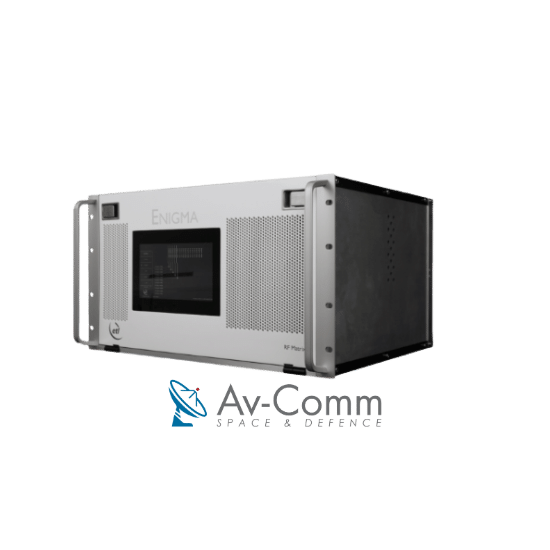

ETL flagship Enigma matrix (router) NGM-101
ETL flagship Enigma matrix (router) range offers up to 32 x 32 routing in a 6U chassis. This can be expanded up to 512 x 512 with additional chassis. With fan-out / distributive and fan-in /combining options.
Description
Description
ETL flagship Enigma matrix (router) range offers up to 32 x 32 routing in a 6U chassis. This can be expanded up to 512 x 512 with additional chassis. With fan-out / distributive and fan-in /combining options.
The Enigma matrix is designed to improve resilience and minimise the risk of expensive downtime for the satcoms user, with single input and output cards and hot-swap active components.
- 32×32 capacity in compact 6U size
- Multiple frequency options including L-Band, S-Band & C-Band
- Fan-In and Fan-out options
- Multi-chassis allows for larger systems up to 1024×1024
- RF card failure only affects single input/output port
- Secure protocols with SNMPv3 and HTTPS
- Local & Remote control & monitoring via RJ45 Ethernet port and web
Key Features
| Parameter | Value |
| Frequency Range | 850-2150 MHz (L-band) |
| Capacity | 32 inputs x 32 outputs, fully populated |
| Gain | 0±1 dB Typical, mean across band |
| Gain Control | -5 to +5 dB in 0.25 dB steps. Settable at each output |
| RF Connectors | 50 Ω SMA 50 Ω BNC 75 Ω BNC 75 Ω F-type |
| Gain Flatness | Full Band: ±1.0 dB ±1.0 dB ±1.5 dB ±1.5 dB Any 36 MHz: ±0.25 dB ±0.25 dB ±0.50 dB ±0.50 dB |
| Input Return Loss | Typ.: 20 dB 20 dB 16 dB 16 dB Min.: 16 dB 16 dB 10 dB 10 dB |
| Output Return Loss | Typ.: 18 dB 18 dB 16 dB 16 dB Min.: 14 dB 14 dB 10 dB 10 dB |
| Isolation (Min. between any 2 ports) |
Input-Output: 60 dB Input-Input: 75 dB Output-Output: 75 dB |
| Group Delay | ≤ 1 ns, across operational bandwidth |
| OIP3 | Minimum Gain: 16 dBm Min Unity Gain: 20 dBm Min Maximum Gain: 24 dBm Min |
| OIP2 | Typical: 32 dBm Min Minimum: 30 dBm Min |
| Switching Time | < 50ms from receipt of a command to implementation of path change |
| Input RF Power | + 20 dBm Absolute maximum |
| Noise Figure | Typ.: 20 dB (Typical with one input routed to one output) Max.: 22 dB (Typical with one input routed to one output) |
| Input RF Power | +20 dBm Absolute maximum |
| Local Control | Via Front Panel capacitive touchscreen |
| Remote Control & Monitoring | Ethernet via RJ45, 10BaseT/100BaseTx, ETL TCP/IP Protocol SNMPv3, HTTPS & built in Web Server |
| Alarms | Ethernet (RJ45) & Dry contact (D-type) for PSU & Amp. status |
Additional information
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 51 × 51 × 51 cm |
| SKU | ETLEMRNGM101 |
