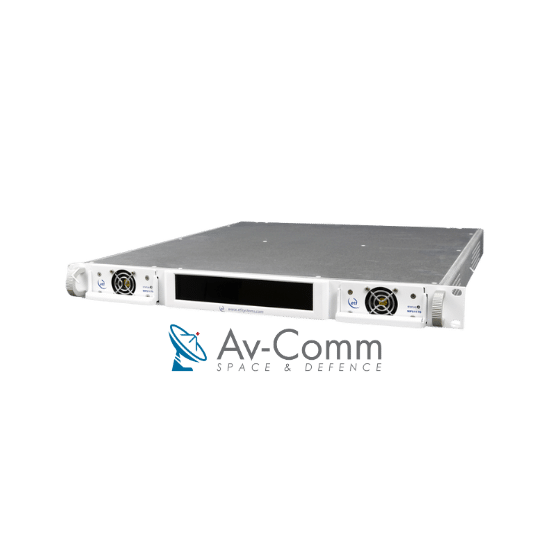

ETL ALT-G1S-S3-104

Name: ETL ALT-G1S-S3-104 - Av-Comm Space & Defence
Brand: ETL System
SKU: ETLATLG1SS3104

ETL’s SMART Alto Amplifier range provides a resilient solution for cable loss within the RF distribution chain for satellite teleports, TVRO and head-ends.

Request a Formal Quotation

Description

ETL’s SMART Alto Amplifier range provides a resilient solution for cable loss within the RF distribution chain for satellite teleports, TVRO and head-ends.

Variable Gain Control
Variable Slope Compensation
Hot swap
Outdoor Chassis housing option
Superior RF linearity and noise figure specifications
1W and 2W high linearity module options
L-Band, C-Band and K-Band frequency ranges.
Secure protocols with SNMPv3 and HTTPS
Local & Remote control & monitoring via RJ45 Ethernet port and web browser interface

Key Features

Parameter	Value
Capacity	17 module slots. Note: Actual modules may require >1 slot
Temperature	Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C
Location/Humidity/Altitude	Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level
Control & Monitoring	Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable
MTTR	20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock
AC Input/Consumption	85-264Vac 50/60Hz / 275W max. consumption at steady state
PSU Redundancy	Dual redundant and alarmed. Diode OR. Hot swappable
Input & Output Ports	Dependant upon module fitted
