COMTECH XICOM – OUTDOOR, XTD-1250KHE, AC-Powered, Air-Cooled, Ku Band , 750-Watt SSPA

Description

XICOM – XTD-1250KHE, High Power 1250W, Ku Band, GaN SATCOM SSPA

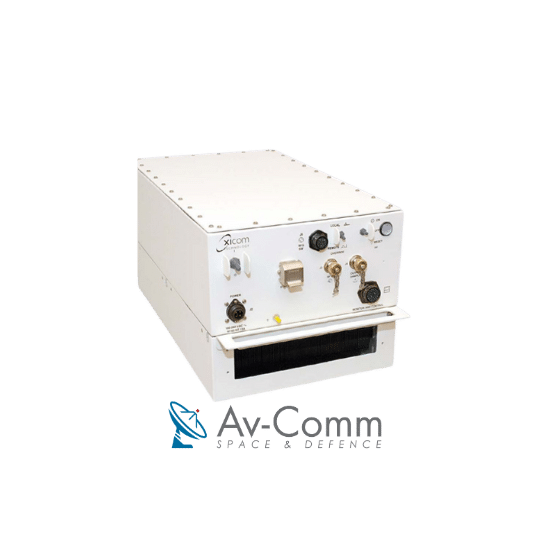

Xicom Products Designed for fixed and transportable terminals needing high power density with high efficiency in challenging environments are flexible, high-performance, AC-powered, antenna-mount outdoor SSPAs/BUCs that offer many features and options including internal L-band BUCs. The XTD-1250 is a compact, self-contained, antenna mountable power amplifier designed for low-cost installation and long life. The XTD-1250 design eliminates the need for an amplifier shelter as well as a long waveguide run between the amplifier and antenna feed horn. RF filters, cooling, and monitoring & control (M&C) systems are all self-contained within the High-Power Amplifier (HPA). These features provide high reliability, low maintenance costs, and low replacement costs.

The XTD-1250 uses high efficiency, dual-stage collector Traveling Wave Tubes (TWT). Some benefits of this type of tube are reduced prime power consumption, lower internal operating temperatures, reliability enhancement.
Xicom is the world leader in innovative TWTA design. Xicom’s outdoor antenna mounted TWTAs are known worldwide for their reliable operation and long life. Acclaimed for their compact and highly efficient design, Xicom’s antenna-mount amplifiers dramatically reduce both installation and operation costs. Products span C-band to V-band with high power and efficiency.

Xicom XTD-1250KHE OPTIONS

• Remote External Controllers
• C-, X-, Ku Band-, DBS – Ka-, Q-, V- and multi-band coverage
• 1:1, 1:2, and 1:N redundancy
• 1+1, 4-way and 8-way power combining
• Extended frequency coverage
• Integrated linearisers (Standard on many models)
• All TWTAs are available with integrated BUCs
• *Liquid Cooling on 250, 500, 750, and 1250 models

General Specifications

• RF Output Power
• Traveling Wave Tube: 1250 Watts PSAT 56.02 dBm (750W)
• Rated Power @ Amplifier Flange 55.4 dBm (350W)
• Intermodulation (maximum) -18 dBc with two equal carriers @ 4dB total output power backoff from rated power.
• Harmonic Output (maximum) -60 dBc
• AM/PM Conversion (maximum) 2.5 deg/dB at 6 dB below rated output power

Frequency & Gain Characteristics

• Output Frequency: 7.9 to 8.4 GHz (other options available)
• Input Frequency: 950 to 1450 MHz (With Optional BUC)
• Input Level, No Damage +10 dBm max
• Small Signal (typical) 70 dB ±5 dB
• Gain Attenuation Range 30 dB in 0.1 dB steps
• Gain Variation (over 40 MHz) 1.0 dB per 40 MHz
• Gain Variation (over full band) 2.5 dB/575 MHz
• Gain Slope (max) ± 0.04 dB/MHz
• Gain Stability, over 24 hours ± 0.25 dB maximum
• Gain Variation over Temp ± 1.0 dB over temperature range at any frequency
