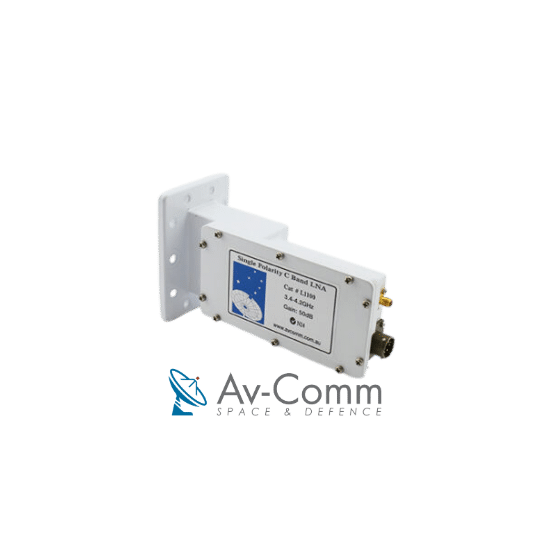

C Band LNA Low Noise Amplifier
$1,938.69 AUD
C band LNAs are used to amplify C Band satellite downlinks in the frequency range of 3.4 – 4.2 GHz without frequency conversion. The input and output of the LNA are the same frequency with the LNA providing very low noise amplification and signal processing. C Band LNAs are typically used in large VSAT antenna…
1 in stock
Description
Description
A C band LNA is used to amplify C Band satellite downlinks in the frequency range of 3.4 – 4.2 GHz without frequency conversion. The input and output of the LNA are the same frequency with the LNA providing very low noise amplification and signal processing. C Band LNAs are typically used in large VSAT antenna transmission systems. To convert the C Band frequency block to L Band 950-1450MHz a Block Downconverter is used or if only a specific transponder is required to be down-converted a Frequency Converter is used.
| Parameter | Value |
| Input Frequency Range | 3.4 – 4.2 GHz |
| Noise Temperature | 30 K Max |
| Output Impedance | 50 Ω |
| Gain | 50 dB |
| Input Waveguide Flange | WR-229G |
| Power Plug | MS3112E10-6P |
| Output Connector | N Type or SMA |
