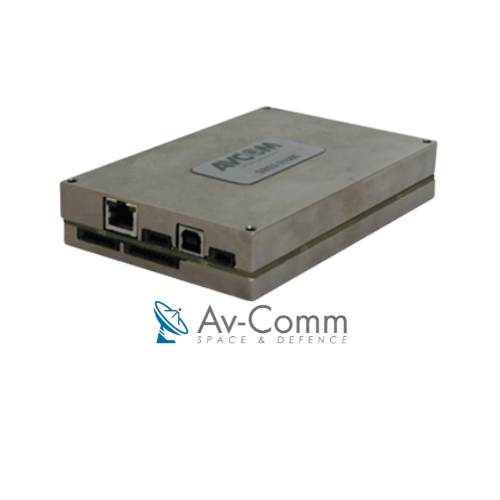

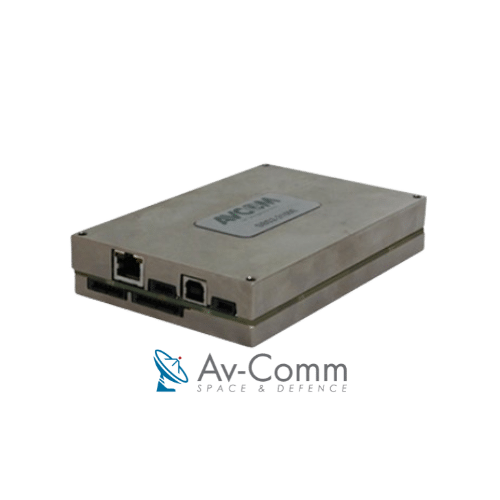

AVCOM SBS2-2150E-S3C0-B Spectrum Analyser for SatCom on the Move
AVCOM SBS2-2150E-S3C0-B Spectrum Analyser for SatCom on the Move can provide discrete remote monitoring and control from anywhere in the world.
Description
Description
AVCOM SBS2-2150E-S3C0-B Spectrum Analyser for SatCom on the Move input covers an extended L-Band frequency of 950MHz to 2150MHz and will also allow monitoring of a 10MHz reference signal. The single board design only requires an external input voltage, accepting a wide range of +15 to +24VDC @ 7W. Communication is provided via Ethernet or USB. The single board supports both commercial Ethernet and USB connectors or header connectors for easier embedded system integration.
Along with resolution bandwidths of 1MHz to 10 kHz, a 3kHz RBW option is available for applications requiring very detailed signal analysis. SBS2-2150E allows changes to the number of data points used if application needs to optimize refresh rate verses resolution. The data point number can be adjusted from 1-4000 points in the control software.
Small Compact Design: The SBS2-2150 is the latest Avcom product designed from the ground up with the system integrator in mind. The compact design measures so that it can easily be integrated into another piece of equipment, inside a small satellite terminal, or as an integral part of the satellite antenna itself.
- Track CW or BPSK Beacon, Track Carrier Power with TPT (Tuned-Power-Tracking), Track Wide Carrier (e.g. DVB) with CEPT(Carrier-Edge-Power-Tracking)
- Beacon Receiver & Spectrum Analyser Single Board!
- Low SwaP-C; (Size, Weight, Power, Cost)
- Satcom-On-The-Move (SOTM) Applications
- Monitoring & Control (M&C) via Ethernet and USB
- Integrated Support via EVO-GUI Software-Included
- Comprehensive API for Easy Integration
Key Features
| Parameter | Value |
| Input Connector | SMA, 50 Ohm |
| Input Frequency Range | 950 to 2150MHz |
| Tuning Step Size | 1kHz |
| Input Level Range | 0 to -115dBm |
| Maximum Input Power Level | +10 dBm max |
| Detection Bandwidth | 10 to 750 kHz |
| Tracking Bandwidth | 10 to 150 kHz |
| Detected Beacon Level Filtering | Low-Pass, User-Selectable: 0.25 Hz, 0.5 Hz, 1.0 Hz, 2.0 Hz, 3.0 Hz |
| Search/Track Rate | User-Selectable: 10 Hz, 25Hz |
| Acquisition Time | <1 second typical |
| Adjustable Delay Before Lock | 0 to 5000 milliseconds |
| Tracking Type | BEACON TRACKING – CW, BPSK (no demodulation). Track power and frequency POWER TRACKING – TPT– Track power at frequency/BW, CEPT– Track Wide Carrier Power like DVB |
| Ethernet | 10/100 Auto, RJ-45 or 8-pin header |
| IP Address | DHCP or Static |
| USB | Type-B and 3-pin header |
| Included Control Application | Avcom EVO-GUI Software (Windows) |
| Application Programming Interface (Api) | POSIX-compliant ‘C’ Pre-built Libraries for Windows and Linux x86 Source code available |
| Protocol | High-reliability closed-loop with error checking |
| Receiver Output Via Physical Outputs | Yes |
| Receiver Output Via M&C Interface | Yes |
| Receiver Output Via M&C Interface | Yes |
Additional information
Additional information
| Weight | .360 kg |
|---|---|
| Dimensions | 3 × 10 × 3 cm |
| SKU | AVSBS2-2150E-S3C0-BÂ |
