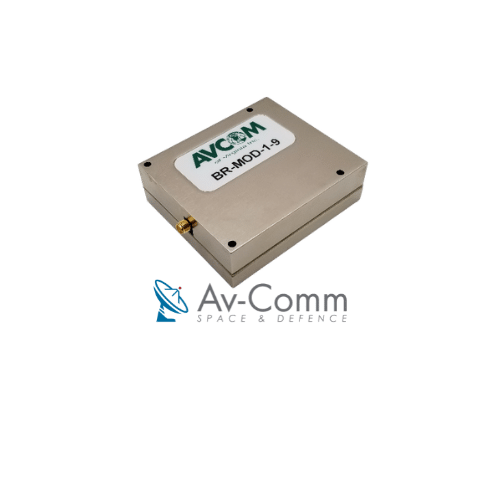

AVCOM Satellite Beacon Receiver L Band 950-2175MHz
AVCOM Satellite Beacon Receiver L Band 950-2175MHz is a full SDR satellite beacon receiver designed on a completely new platform to meet today’s system challenges. It is a robust and reliable product featuring many capabilities to provide rugged and reliable operation in embedded application.
Description
Description
AVCOM Satellite Beacon Receiver L Band 950-2175MHz is a full SDR satellite beacon receiver designed on a completely new platform to meet today’s system challenges. It is a robust and reliable product featuring many capabilities to provide rugged and reliable operation in embedded application.
A CW satellite beacon carrier can be acquired quickly and tracked in On-the-Move, as well as in fixed-site applications. It provides a voltage output from 0 to 10 VDC proportional with the input L-band signal. In addition, the receiver can lock on and track BPSK-type carrier signals AND is uniquely capable of locking on and tracking a DVB- like carriers utilizing an exclusive Avcom-only Carrier- Edge-Power-Tracking (CEPT) function.
Avcom’s EVO-GUI software is included and provides a full- featured set of tools for robust operations for any application. Avcom provides API protocol documentation and support for developing POSIX-C compliant APIs for your application.
- Track Conventional Beacon Carrier
- Â Compact, Rugged Design
- Â For Integration in On-The-Move Applications
- Â Monitoring & Control (M&C) via Ethernet
-  Integrates with Avcom’s EVO-GUI
- Â Comprehensive API for Easy Integration
- Â Extended Temperature Range
- Â Low SWaP (Size, Weight, and Power)
Key Features
| Parameter | Value |
| Input Connections | SMA, 50 Ohm |
| Input Frequency Range | 930 to 2175MHz |
| Tunning Step Size | 1kHz |
| Input Level Range | -10 to -100 dBm |
| Maximum Input Power Level | – 10 dBm max |
| Detection Bandwidth | 10 to 750 kHz |
| Tracking Bandwidth | 10 to 150 kHz |
| Detected Level Filtering | Low-Pass, User-Select: 0.25 Hz, 0.5 Hz,
1.0 Hz, 2.0Hz, 3.0 Hz |
| Search/Track Rate | User-Selectable: 10 Hz, 25Hz |
| Acquisition Time | <1 second typical |
| Adjustable Delay Before Lock | 0 to 5000 milliseconds |
| Acquisition/Tracking Level | Minimum C/No, 39 dB-Hz |
| Beacon/Carrier Type | CW, BPSK (No Demod), CEPT(Carrier-Edge- Power- Track) on DVB (No Demod) |
Additional information
Additional information
| Weight | .200 kg |
|---|---|
| Dimensions | 8 × 9 × 3 cm |
| SKU | AVBR-MOD-1-9-A-1SÂ |
