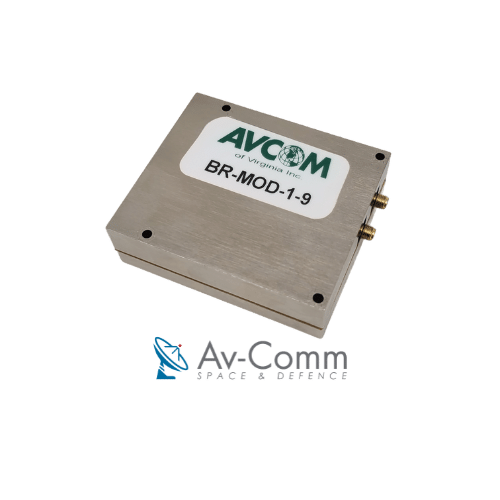

AVCOM Satellite Beacon Receiver Dual Input Wideband 400-3000MHz

Description

AVCOM Satellite Beacon Receiver Dual Input Wideband 400-3000MHz is a full SDR satellite beacon receiver designed on a completely new platform to meet today’s system challenges. It is a robust and reliable product featuring many capabilities to provide rugged and reliable operation in embedded application.

A CW satellite beacon carrier can be acquired quickly and tracked in On-the-Move, as well as in fixed-site applications. It provides a voltage output from 0 to 10 VDC proportional with the input L-band signal. In addition, the receiver can lock on and track BPSK-type carrier signals AND is uniquely capable of locking on and tracking a DVB- like carriers utilising an exclusive Avcom-only Carrier- EdgePower-Tracking (CEPT) function.

Avcom’s EVO-GUI software is included and provides a full- featured set of tools for robust operations for any application.

Embedded Extended-Band Dual Input
Beacon Receiver Module

• Track L-Band CW Beacon Carrier; BPSK Carrier
• CEPT-Carrier-Edge-Power-Track for DVB Carrier
• For Integration in On-The-Move Applications
• Monitoring & Control (M&C) via Ethernet with EVO-GUI
• Comprehensive API for Easy Integration
• Extended Temperature Range
• Low SWaP (Size, Weight, and Power)
