Av-Comm 9.2m Full-Motion Earth Station Antenna
The Av-Comm 9.2m Full-Motion Earth Station Antenna delivers exceptional performance for transmit/receive and receive only applications for L through to Ka-Band frequencies. The Av-Comm 9.2m Full-Motion Earth Station Antenna offers a reflector design that incorporates precision-formed panels, radial trusses and hub assembly, with a full motion geometry via a kingpost Turning Head Elevation over Azimuth…
Description
Description
The Av-Comm 9.2m Full-Motion Earth Station Antenna delivers exceptional performance for transmit/receive and receive only applications for L through to Ka-Band frequencies. The Av-Comm 9.2m Full-Motion Earth Station Antenna offers a reflector design that incorporates precision-formed panels, radial trusses and hub assembly, with a full motion geometry via a kingpost Turning Head Elevation over Azimuth design.

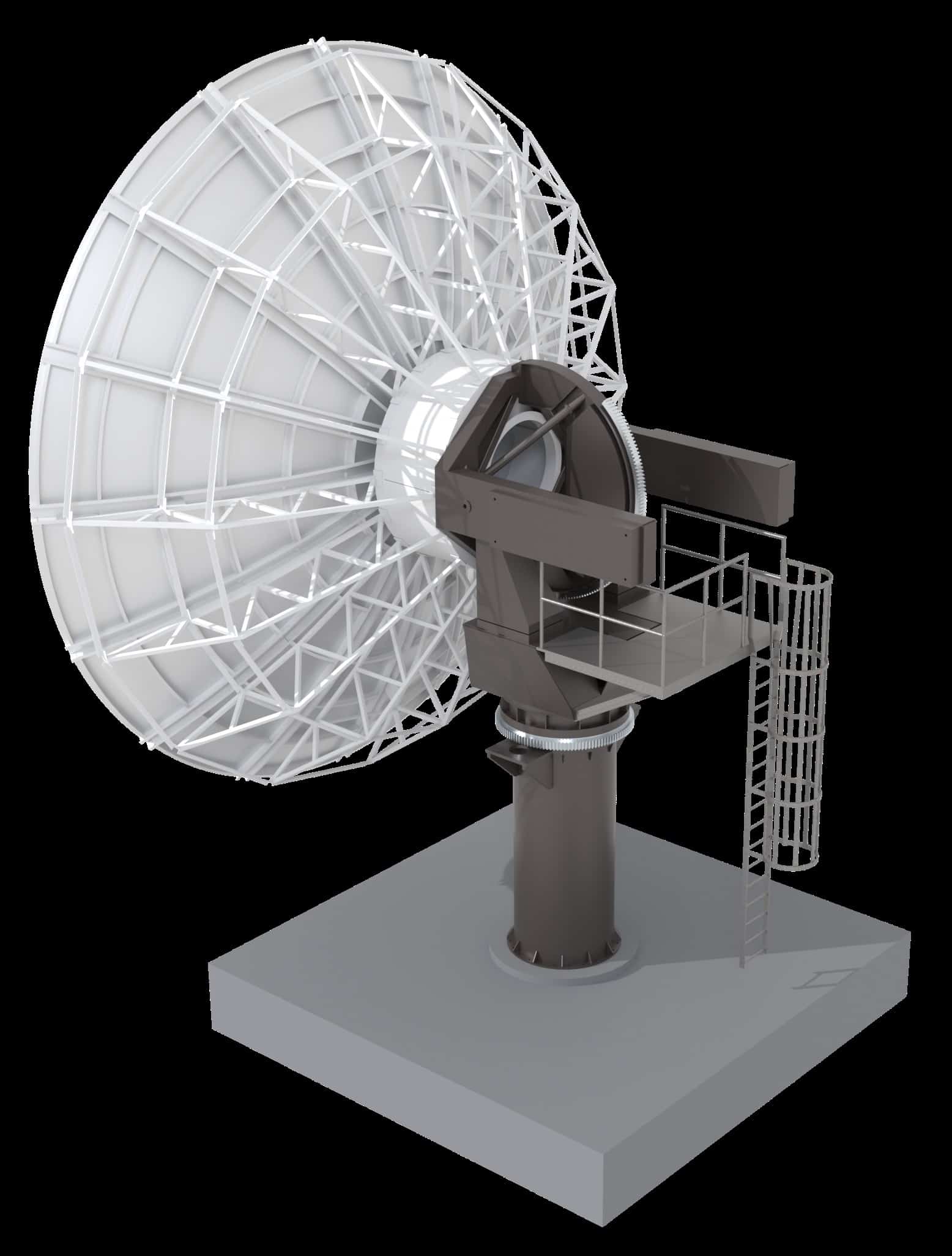

The reflector is supported by a galvanised back structure and the large center hub provides spacious accommodation for equipment mounting. The Antennas kingpost pedestal design that provides the necessary stiffness and deflection for precision pointing and tracking requirements. The pedestal is designed for full-motion, full orbital arc coverage and are readily adaptable to ground or rooftop installations.
The electrical & Radio Frequency (RF) performance is compliant with FCC and ITU-RS-580 sidelobe specifications and Intelsat (B,C) and Eutelsat requirements.
Key Features
Av-Comm 9.2m Full-Motion Earth Station Antenna Features:
• Fully interchangeable reflector components with aluminum reflector panels and galvanised steel backup structure
• Designed for 1.5 to 23 GHz operation, meeting FCC and ITU-RS-580 requirements
• Galvanised steel elevation-over-azimuth kingpost pedestal with turning-head geometry
• Survives 125 mph winds in any position
Av-Comm 9.2m full motion Earth Station Antenna Features:
• L, S, C, X, Ku, DBS, K, Ka-Band feeds
• Turning-head Elevation over Azimuth geometry, available in Elevation jackscrew & gear driven designs
• CP/LP manual or remote switchable feeds
• Specialised feed systems (e.g., extended, dual, multi-band – Receive & transmit)
• Antenna control system via servo
• Reflector and feed deicing systems
• Monopulse, step NORAD & TLE Tracking capabilities
• Integrated transmit cross axis kits
• Integrated LNA or LNB systems
• HPAs, converters and M&C systems
• Packing for sea and air transport
• Turnkey installation and testing or assistance
Av-Comm 9.2m full motion Earth Station Antenna Features:
• X-Band low PIM reflector/feed
• Extended continuous azimuth travel, in segments and continuous
• High wind configuration
• Low operating temperatures
• High power configurations
