Our L1511 Av-Comm Extended C Band PLL +/-5 kHz LNB has an input frequency of 3.4-4.2 GHz and utilises phase lock loop (PLL) technology to achieve +/-5 kHz stability. Our Av-Comm C Band PLL +/- 5 kHz LNB provides a broadcast-grade solution for reception of C Band satellite signals including DVB-S/S2, SCPC, MCPC, and signals…

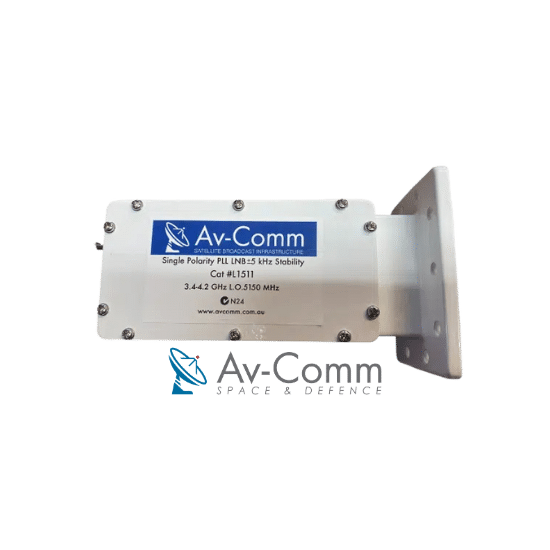

Our L1511 Av-Comm extended C Band PLL +/-5 kHz LNB has an input frequency of 3.4-4.2 GHz and utilises phase lock loop (PLL) technology to achieve +/-5 kHz stability.
Our Av-Comm Extended C Band PLL +/- 5 kHz LNB provides a broadcast-grade solution for reception of C Band satellite signals including DVB-S/S2, SCPC, MCPC, and signals broadcast in high order modulation codes such as 8PSK and 16APSK. The L1511 Av-Comm Extended C Band PLL +/-5 kHz LNB provides a very high level of reliability and performance due to the robust Australian design.
Simultaneous reception of both polarities is possible with two of these LNBs and the addition of our F1750 C Band OMT and F1341 High-Efficiency Feedring, for use with circularly polarised signals our F1342 Waveguide polariser.
Parameter | Value |
---|---|
Input Frequency | 3.4-4.2 GHz |
Filter Type | No Filter |
Conversion Gain | 65 dB |
Local Oscillator | 5.150 GHz |
Local Oscillator Stability | +/- 5kHz |
Input Waveguide Flange | CPR-229G |
Output Connector |      F-Type 75 Ω |
Catalogue Number | L1511 |
