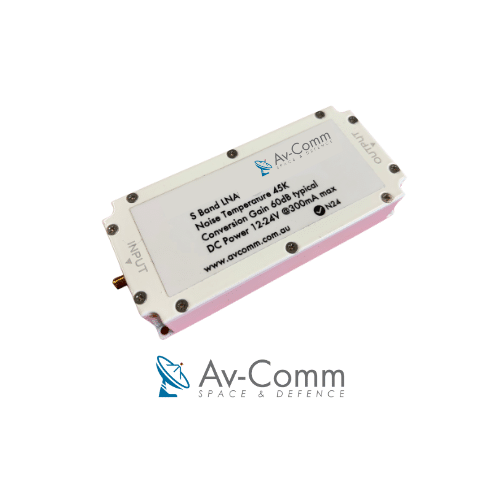

Av-Comm L1104 S-Band LNA 2200-2400GHz
Our Av-Comm L1104 S-Band LNA supports a frequency input of 2200MHz to 2400MHz. This LNA is design to be used with S-Band Satellite Ground Systems where amplification of the S-Band is required to distribute the signal to downstream electronics such as spectrum analysers, decoders, or digitisers.
Description
Description
Our Av-Comm L1104 S-Band LNA supports a frequency input of 2200MHz to 2400MHz. This LNA is design to be used with S-Band Satellite Ground Systems where amplification of the S-Band is required to distribute the signal to downstream electronics such as spectrum analysers, decoders, or digitisers.
The Av-Comm L1104 S-Band LNA is powered via a DC voltage injected up the output coax cable via a bias tee or PSU. The S-Band LNA is fitted with SMA-F coax connectors.
Key Features
| Input Frequency | 2.2-2.4 GHz |
| Gain Flatness | 2dB point to point (max) |
| Gain Ripple per 36MHz | 1dB point to point (max) |
| Output P1dB | +10dBm (min) |
| Noise Temperature | 45K (Max) |
| Conversion Gain | 60dB typ (55dB min, 65dB max) |
| Input Connector | SMA (female) |
| Output Connector | SMA (female) |
| Power Supply | +12-24 volts DC |
Additional information
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
| Frequency Band | |
| SKU | L1104 |
