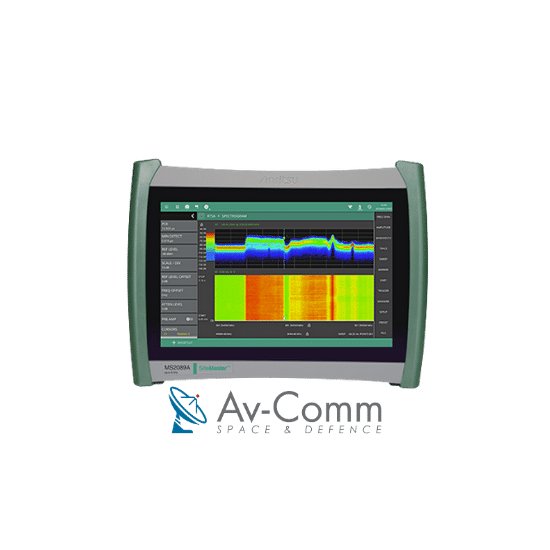

Anritsu MS2089A Spectrum Analyser
The MS2089A comes in two configurations. The first configuration is a 5 kHz to 4 GHz cable antenna analyser with a 9 kHz to 4 GHz spectrum analyser.
Description
Description
The latest Generation Anritsu Site Master integrates cutting-edge technology, customer-driven innovation, and decades of expertise in test and measurement solutions. It seamlessly integrates cable and antenna analysis with spectrum analysis and VNA functionalities, offering a comprehensive testing solution for professionals in the wireless industries. From telecommunications and broadcasting to aerospace and defense, the Site Master cable and antenna analyser with Integrated spectrum analyser caters to a wide range of applications, including DAS, satellite monitoring, interference analysis, and installation and maintenance tasks.
The MS2089A comes in two configurations. The first configuration is a 5 kHz to 4 GHz cable antenna analyser with a 9 kHz to 4 GHz spectrum analyser. The second configuration is a 5 kHz to 6 GHz cable antenna analyser with a 9 kHz to 6 GHz spectrum analyser. The MS2089A weighs less than 8.5 lbs. and has the same IK08 10-inch touch screen.
- IQ capture/Streaming
- Real-Time Spectrum Analyser (RTSA)
- LTE FDD/TDD Analyser
- 5GNR FR1 Analyser
- Interference Analyser
Key Features
| Cable and Antenna Analyser: 5 kHz to 4, 6 GHz |
| Return Loss, Cable Loss, VSWR, Distance-To-Fault, Time Domain Reflectometry, Smith Chart, 1-Port Phase |
| Spectrum Analyser: 9 kHz to 4, 6 GHz |
| 105 dB of dynamic range from 50 kHz to 3 GHz typical |
| 350 ฮผs/data point in fast sweep mode |
| Built-in PDF/HTML report generation |
| 10,049 data points |
| Real-Time Spectrum Analyser (RTSA) |
| IQ Capture/streaming |
| Interference Analyser |
| True Power Meter |
| AM/FM Modulation Quality measurements |
| LTE FDD/TDD Analyser |
| 5GNR FR1 Analyser |
| Coverage Mapping |
| Vector Network Analyser: 5 kHz to 4, 6 GHz |
| 2-port, 1-path measurements |
| 16 Display formats including: Log Mag, VSWR, Phase, Group delay, Smith Chart, Polar |
| Field-proven design: Explosive Atmosphere MIL- PRF-28800F Section 4.5.6.3 compliant |
| Complies with IP52 when installed in soft carrying case |
| IK08 Rated Screen |
Additional information
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 30 × 22 × 10 cm |
| Frequency Band | |
| SKU | ANRTSUSAMS2089A |
